| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
290 pcs
|
290 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type |

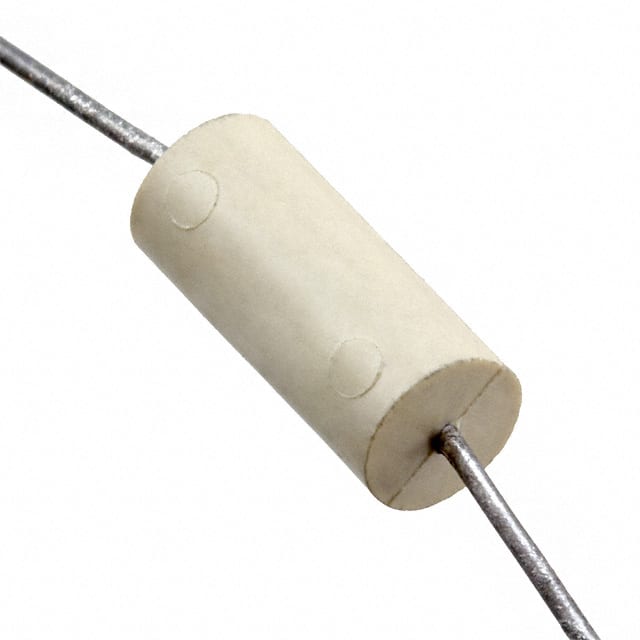

The API Delevan 2500-12J is a fixed molded inductor with an inductance of 470 µH and a tolerance of ±5%. It is rated for a maximum DC current of 108 mA and has a maximum DC resistance of 11 Ohms. The inductor is unshielded and features a molded construction with an iron core material. Its self-resonant frequency is 4 MHz, and it achieves a Q factor of 65 at 790 kHz.
This component is designed for through-hole mounting in an axial package measuring 0.190" diameter by 0.440" length (4.83 mm x 11.18 mm). It operates over a temperature range of -55°C to 105°C, making it suitable for a wide variety of general-purpose and industrial applications.
The molded body provides mechanical stability and protection, while the unshielded design is appropriate for circuits where electromagnetic shielding is not critical. The iron core supports high inductance values in a compact form factor.
The inductance is 470 µH with a ±5% tolerance.
The maximum DC current rating is 108 mA.
The maximum DC resistance (DCR) is 11 Ohm.
The self-resonant frequency is 4 MHz.
The inductor comes in an axial leaded through-hole package.
The operating temperature range is -55°C to 105°C.
No, this inductor is unshielded.
