| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,105 pcs
|
7105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,105 pcs
|
7105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Tolerance |

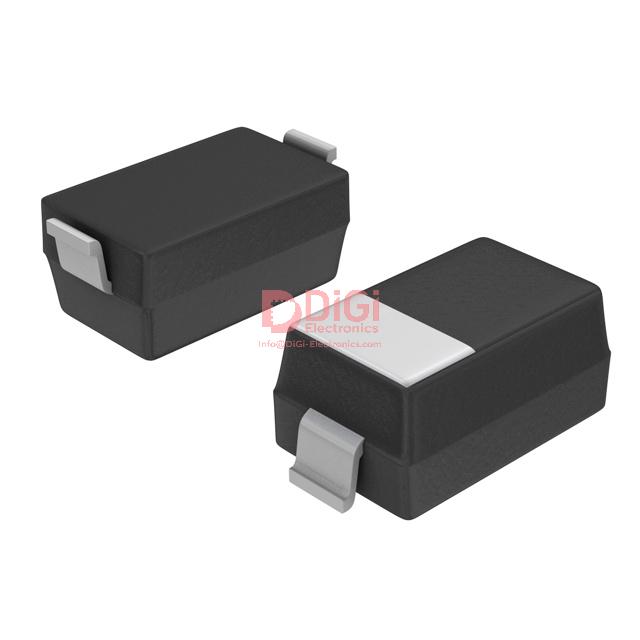

This PZS5124BAS-AU_R1_000A1 from Panjit International Inc. is a silicon Zener diode designed for voltage regulation applications. It offers a stable 24V nominal Zener voltage with a tight tolerance of ±5%. The diode has a maximum power dissipation of 500mW, making it suitable for various electronic circuits.
The component is designed for surface mounting and comes in a compact SOD-123 package, facilitating integration into space-constrained designs. Its operating temperature range is -55°C to 150°C, ensuring reliable performance in demanding environments. The AEC-Q101 qualification indicates its suitability for automotive applications.
Key electrical characteristics include a reverse leakage current of 10 nA at 18.2V. The PZS5124BAS-AU_R1_000A1 is a standard component for voltage clamping and reference circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal zener voltage is 24V with a ±5% tolerance.
The maximum power dissipation is 500mW.
The reverse leakage current is 10nA at a reverse voltage of 18.2V.
The operating temperature range is -55°C to 150°C (junction temperature).
The package is SOD-123 (surface mount).
Surface mount.
Yes, the part is AEC-Q101 qualified and automotive grade.
