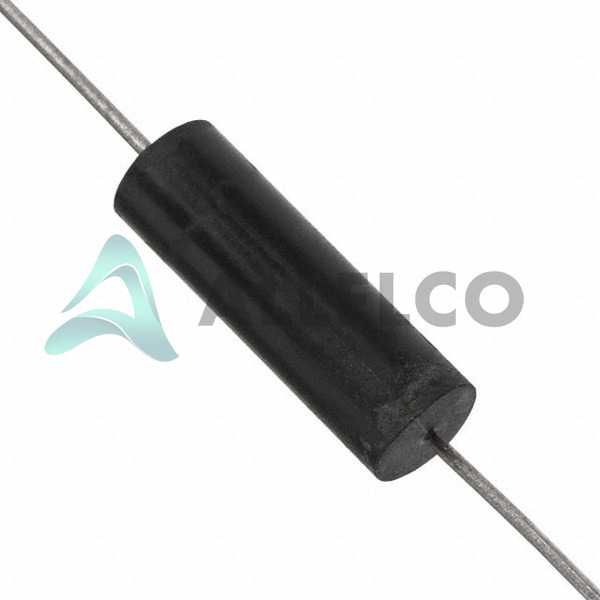

2474R-06J Fixed inductor with 2.7 µH inductance, 5.03 A current rating, and 14 mOhm max DCR. Through-hole axial package with ferrite core.
Mfr Part #:

2474R-06J

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
Fixed inductor with 2.7 µH inductance, 5.03 A current rating, and 14 mOhm max DCR. Through-hole axial package with ferrite core.
✓ Total Stock: 329 pcs

2474R-06J Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
329 pcs
On Request
329 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2474R-06J Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Inductance
Lead Style
Material
Mounting Type
Operating Temperature
SVHC Present
Shielding
Tolerance
Type
View Similar Products (0)

2474R-06J Description

Short technical summary and product information.

The 2474R-06J is a fixed inductor manufactured by API Delevan Inc. It offers an inductance of 2.7 µH with a tolerance of ±5%. The inductor is rated for a DC current of 5.03 A and features a low maximum DC resistance of 14 mOhm.



This through-hole component comes in an axial package measuring 0.240" diameter by 0.740" length (6.10 mm x 18.80 mm). It is constructed with a molded ferrite core and is unshielded. The operating temperature range spans from -55°C to 125°C, suitable for demanding environments.



Applications include power supply filtering, DC-DC converter circuits, and general purpose inductive loads where through-hole mounting is preferred.

2474R-06J Quick Information

Product Type: Fixed Inductor
Series: 2474R
Canonical Name: Fixed Inductor 2.7 µH ±5% 5.03A Axial Through Hole
Subcategory: Molded Inductor

2474R-06J Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2474R-06J Features

  • Inductance of 2.7 µH with ±5% tolerance.
  • Rated for 5.03 A DC current.
  • Low 14 mOhm max DC resistance.
  • Unshielded molded ferrite core.
  • Through-hole axial package.

2474R-06J Applications

  • Power supply output filtering applications
  • DC-DC converter energy storage chokes
  • High current switching regulator circuits
  • Low noise power line filtering uses
  • Through-hole power inductor designs

2474R-06J FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the 2474R-06J?

2.7 µH

What is the current rating of the 2474R-06J?

5.03 A

What is the DC resistance of the 2474R-06J?

14 mOhm max

What package type is the 2474R-06J?

Axial through-hole package

What is the operating temperature range?

-55°C to 125°C

Is the 2474R-06J shielded?

No, it is unshielded.

What is the inductance tolerance?

±5%
