| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Configuration | |
| Battery Type | |
| Battery Type, Function | |
| Contact Material | |
| Holder Material | |
| Mounting Type | |
| Number of Cells | |
| Spring Material | |
| Style | |
| Termination Style | |
| Wire Gauge | |
| Wire Insulation |

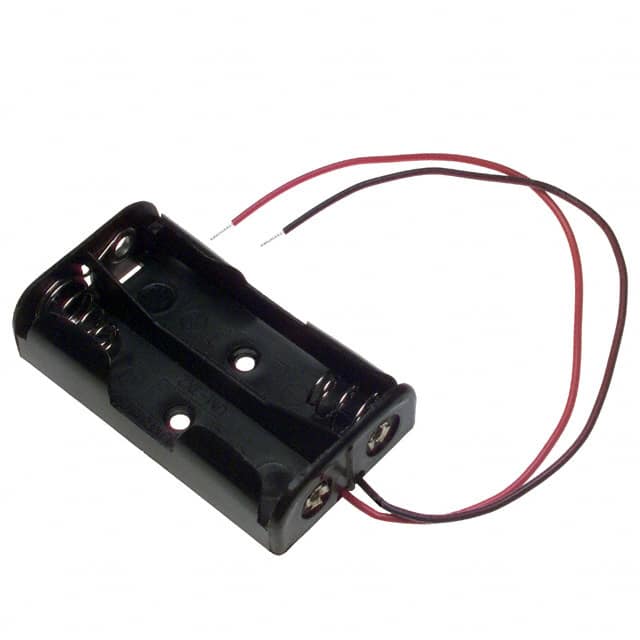

The Keystone Electronics 2463 is a battery holder designed to accommodate two AA cylindrical cells in a series configuration, delivering a combined voltage output. The holder features an open-style, chassis-mountable design with 6-inch (152.4mm) wire leads terminated with tinned ends, providing flexible installation options.
The holder body is constructed from durable polypropylene, offering good electrical insulation and chemical resistance. The springs are made of nickel-plated spring steel, and the contacts are nickel-plated brass, ensuring reliable electrical connection and corrosion resistance. The contact springs are designed to self-adjust to variations in battery length, maintaining low contact resistance and secure battery retention under shock and vibration.
This model (2463) is the wire-lead variant of the 246x series, which also includes PC mount and PC mount with ribbon options for different assembly needs. The series configuration of the two cells makes this holder suitable for powering devices requiring a nominal 3V supply from two 1.5V AA batteries.
The Keystone 2463 holds 2 AA cells.
It has wire leads of 6 inches (152.4 mm) length, 26 AWG, with UL/CSA1007 insulation.
The holder is designed for chassis mount.
The two cells are wired in series.
The holder is made of polypropylene, springs are nickel-plated spring steel, and contacts are nickel-plated brass.
