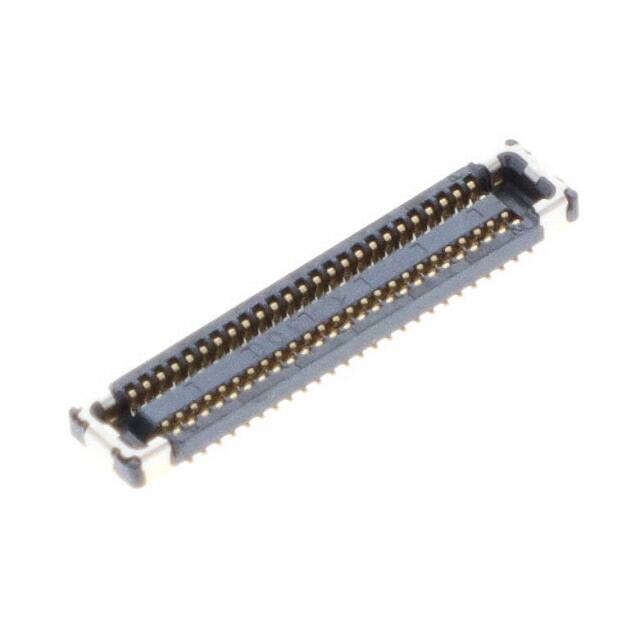

245863050104829+ Kyocera AVX 245863050104829+ is a 0.35mm pitch, 50 position receptacle with outer shroud contacts for board-to-board stacking at 0.8mm height.
Mfr Part #:

245863050104829+

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Kyocera AVX 245863050104829+ is a 0.35mm pitch, 50 position receptacle with outer shroud contacts for board-to-board stacking at 0.8mm height.
✓ Total Stock: 10,018 pcs
$ Price Range: $0.51 - $0.93

245863050104829+ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,018 pcs
On Request
10018 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

245863050104829+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Termination Style
View Similar Products (0)

245863050104829+ Description

Short technical summary and product information.

The Kyocera AVX 245863050104829+ is a fine-pitch board-to-board receptacle connector featuring a 0.35mm pitch and 50 positions arranged in 2 rows. It is designed for surface mount soldering and offers a mated stacking height of 0.8mm, making it suitable for space-constrained electronic assemblies.



The connector uses gold-plated copper alloy contacts housed in a heat-resistant plastic insulator. The outer shroud contact design provides structural robustness and smooth guiding during mating to prevent insulator and contact damage from misalignment. Metal tabs at both ends enable high current carrying capability up to 10A per tab.



The part is packaged in tape and reel with a standard quantity of 1000 pieces per reel, supporting automated assembly processes. It is RoHS3 compliant.

245863050104829+ Quick Information

Product Type: Board to Board Connector
Series: 5863
Canonical Name: Kyocera AVX 245863050104829+ 0.35mm Pitch 50 Position Receptacle, Outer Shroud Contacts
Subcategory: Board to Board Connector

245863050104829+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

245863050104829+ Estimated Pricing

Qty Low High
1+ $0.93 $0.93
10+ $0.79 $0.79
100+ $0.67 $0.67
500+ $0.60 $0.60
1,000+ $0.55 $0.55
2,500+ $0.52 $0.52
5,000+ $0.51 $0.51
15,000+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

245863050104829+ Features

  • 0.35mm fine pitch for space saving.
  • 50 positions in 2 rows.
  • 0.8mm mated stacking height.
  • Gold plated copper alloy contacts.
  • Surface mount with tape and reel packaging.

245863050104829+ Applications

  • Used in compact portable electronic devices.
  • Ideal for board-to-board stacking in tight enclosures.
  • Suitable for high-density interconnect applications.
  • Metal tabs allow power delivery up to 10A.

245863050104829+ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

The pitch is 0.35mm.

How many positions does this connector have?

It has 50 positions arranged in 2 rows.

What is the mounting type?

Surface mount.

What is the mated stacking height?

0.8mm.

What is the contact finish?

Gold.

Is this connector RoHS compliant?

Yes, it is RoHS3 compliant.
