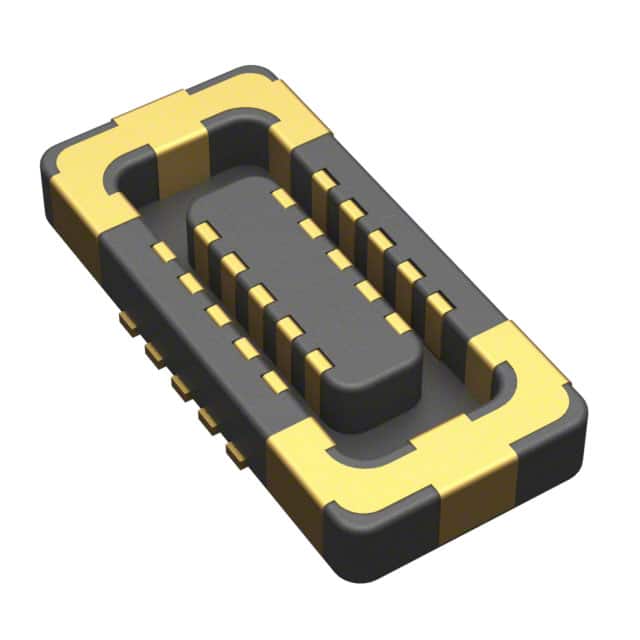

245861010004829+ 10 position, 2-row, 0.35mm pitch surface mount receptacle connector from Kyocera AVX. Features gold contact finish and solder retention for reliable board-to-board connections.
Mfr Part #:

245861010004829+

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
10 position, 2-row, 0.35mm pitch surface mount receptacle connector from Kyocera AVX. Features gold contact finish and solder retention for reliable board-to-board connections.
✓ Total Stock: 26,652 pcs
$ Price Range: $0.19 - $0.39

245861010004829+ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
26,652 pcs
On Request
26652 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

245861010004829+ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

245861010004829+ Description

Short technical summary and product information.

The Kyocera AVX 245861010004829+ is a 10-position, 2-row receptacle connector with a 0.35mm pitch, designed for surface mount applications. It features gold-plated center strip contacts and a mated stacking height of 0.6mm, making it suitable for compact mezzanine board-to-board connections. The connector includes solder retention features to ensure reliable attachment during reflow soldering. With a height above board of only 0.57mm, it enables low-profile designs. This component is supplied in tape and reel packaging for automated assembly.

245861010004829+ Quick Information

Product Type: Mezzanine Connector Receptacle
Series: 5861
Canonical Name: Kyocera AVX 245861010004829+ 10 Position 0.35mm Pitch Receptacle, Center Strip Contacts, Surface Mount
Subcategory: Mezzanine Connectors

245861010004829+ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

245861010004829+ Estimated Pricing

Qty Low High
1+ $0.39 $0.39
10+ $0.33 $0.33
100+ $0.28 $0.28
250+ $0.25 $0.25
1,000+ $0.24 $0.24
2,500+ $0.23 $0.23
5,000+ $0.21 $0.21
10,000+ $0.19 $0.19
15,000+ $0.19 $0.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

245861010004829+ Features

  • 10 positions arranged in 2 rows.
  • 0.35mm pitch enables high density.
  • Surface mount with solder retention.
  • Gold contact finish ensures reliability.
  • 0.6mm mated stacking height.

245861010004829+ Applications

  • Used in compact mezzanine board-to-board connections.
  • Ideal for portable electronic devices.
  • Suitable for high-density PCB designs.
  • Common in mobile phone and tablet assemblies.

245861010004829+ FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 245861010004829+ connector have?

10 positions in 2 rows.

What is the pitch of this Kyocera AVX connector?

0.35mm (0.014 inches).

What is the mounting type for this connector?

Surface mount with solder retention.

What is the mated stacking height?

0.6mm.

What contact finish does this connector have?

Gold.
