| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
365 pcs
|
365 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Dielectric Withstanding Voltage | |
| Features | |
| Floating Range (X/Y) | |
| Halogen Free | |
| Height Above Board | |
| Insulator Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Rated Voltage | |
| SVHC Present | |
| Tape & Reel | |
| rated_current (Nominal @ Power pin) | |
| rated_current (Nominal @ Signal) |

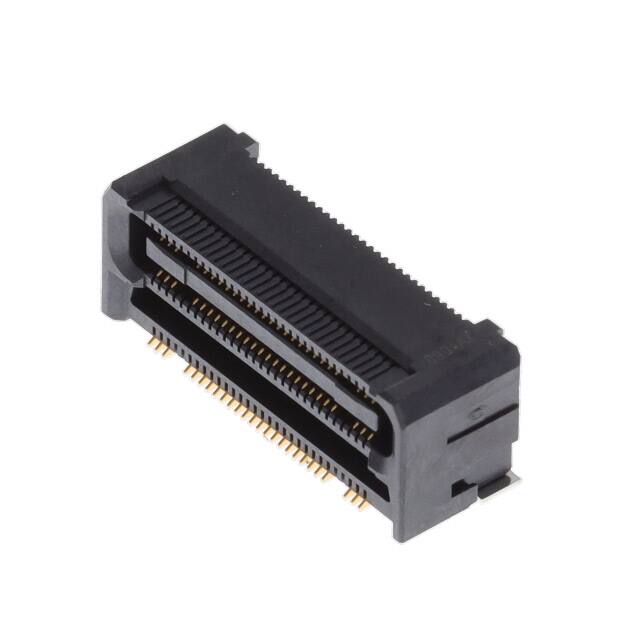

The Kyocera AVX 245656052101829+T is a 52 position, 0.5mm pitch board to board receptacle connector from the 5656 Series. This right angle surface mount connector features a floating design with ±1.0mm movement in the X and Y directions, compensating for misalignment during assembly and vibration in operation. The receptacle accepts 2 rows of contacts and includes board guide and solder retention features for reliable mounting. Electrical ratings include 0.5A per signal contact and 2.0A per power pin at 50V DC, with a dielectric withstanding voltage of 250V AC rms. The operating temperature range spans -40°C to +125°C, suitable for automotive and industrial environments. Contacts are gold-plated copper alloy, and the insulator is heat-resistant plastic. The connector is RoHS compliant and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.73 | $5.73 |
| 10+ | $5.22 | $5.22 |
| 25+ | $4.94 | $4.94 |
| 50+ | $4.83 | $4.83 |
| 100+ | $4.60 | $4.60 |
| 250+ | $4.02 | $4.02 |
| 500+ | $3.90 | $3.90 |
| 1,000+ | $3.25 | $3.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.50mm
52 positions in 2 rows.
0.5A per signal contact and 2.0A per power pin.
50V DC.
Surface mount, right angle.
-40°C to +125°C.
Yes, it has a floating range of ±1.0mm in the X and Y directions.
