| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
275 pcs
|
275 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Quantity | |
| Pitch | |
| Tape & Reel |

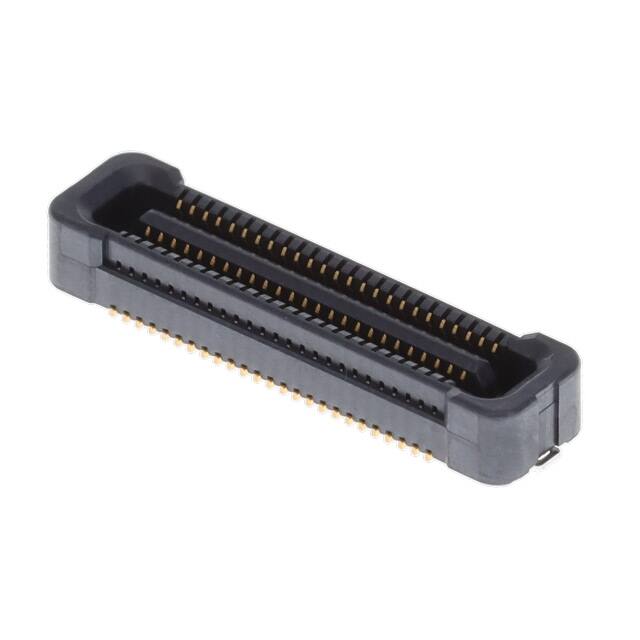

The Kyocera AVX 245655050400829+T is a 50-position floating receptacle from the 5655 series, designed for board-to-board mezzanine applications. It features a 0.5mm pitch and 2 rows of contacts, enabling high-density interconnects in compact electronic assemblies.
This connector offers a mated stacking height of 4mm and a height above board of 2.75mm, making it suitable for low-profile designs. The surface mount mounting type supports automated assembly processes, while the board guide and solder retention features enhance mechanical stability during soldering and operation.
Gold contact finish ensures reliable signal integrity and corrosion resistance over repeated mating cycles. The part is packaged in tape and reel with 1000 pieces per reel, compatible with standard pick-and-place equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.77 | $4.77 |
| 10+ | $4.06 | $4.06 |
| 25+ | $3.80 | $3.80 |
| 50+ | $3.62 | $3.62 |
| 100+ | $3.45 | $3.45 |
| 250+ | $3.23 | $3.23 |
| 500+ | $3.08 | $3.08 |
| 1,000+ | $2.89 | $2.89 |
| 2,000+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm (0.020").
It has 50 positions arranged in 2 rows.
Surface mount.
The mated stacking height is 4mm.
Gold contact finish.
Tape and reel, 1000 pieces per reel.
