Mfr Part #:

24563133

Mfr Name: Schroff

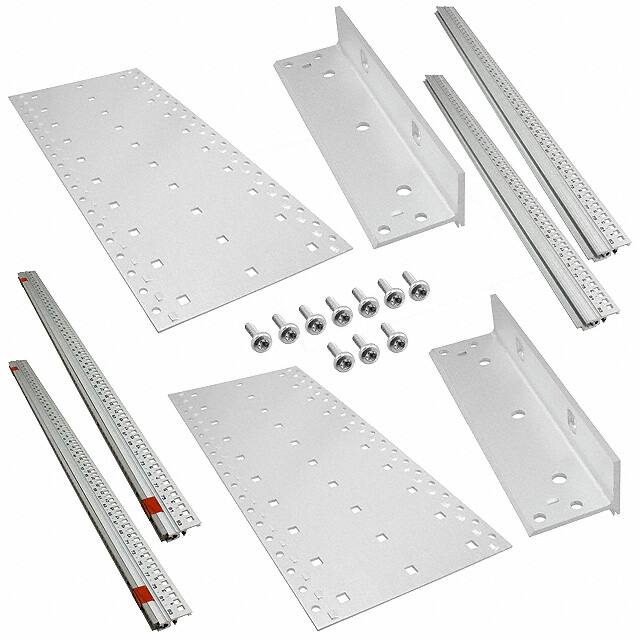

Schroff 24563133 is a 3U 19" subrack kit for 84HP card cages. It features aluminum construction with a 295mm depth and no card guides.

✓ Total Stock: 3 pcs

$ Price Range: $87.74 - $112.26

24563133 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Chanetech ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

24563133 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Card Racks
Manufacturer Name	Schroff
Guide Method	No Card Guide
Height	133.35mm (5.250")
Length	295.00mm (11.614")
Material	Aluminum
Type	Subrack Kit
Width	426.72mm (16.800")

View Similar Products (0)

24563133 Description

Short technical summary and product information.

The Schroff 24563133 is a subrack kit designed for 19" rack-mount applications. It conforms to the 3U height standard (133.35mm) and offers a 84HP width (426.72mm) with a depth of 295.00mm.

Constructed from aluminum, this subrack kit provides a lightweight yet durable framework for mounting PCBs and electronic modules. The kit does not include card guides, allowing flexible configuration for custom board layouts.

This subrack is RoHS3 compliant (unverified), meeting current environmental standards. It is suitable for a wide range of industrial, telecommunications, and data center equipment where standard Eurocard form factors are required.

24563133 Quick Information

Product Type: Subrack Kit

Series: 24563

Canonical Name: 19" 3U 84HP Subrack Kit, 295mm Depth

24563133 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: Unaffected

24563133 Estimated Pricing

Qty	Low	High
1+	$112.26	$112.26
5+	$95.96	$95.96
10+	$89.69	$89.69
25+	$87.74	$87.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

24563133 Features

3U height for standard rack systems.
295mm depth for card insertion.
Aluminum construction for lightweight durability.
No card guide for flexible configuration.
RoHS3 compliant (unverified).

24563133 Applications

Used for mounting PCBs in 19" racks.
Ideal for custom electronic enclosures.
Suitable for 84HP Eurocard formats.
Common in telecommunications equipment.

24563133 FAQs

5 frequently asked questions generated from this part’s specifications.

Is the Schroff 24563133 RoHS compliant?

Yes, the RoHS status is listed as Compliant (RoHS3), but this is unverified and should be confirmed with the manufacturer.

What are the dimensions of this subrack kit?

The height is 133.35mm (3U), width is 426.72mm (84HP), and depth is 295.00mm.

What material is the 24563133 made of?

The subrack kit is made of aluminum.

Does this subrack include card guides?

No, this subrack kit has no card guides.

What type of product is the 24563133?

It is a subrack kit designed for 19" 3U 84HP card cage systems.
