| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Dielectric Withstanding Voltage | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Mating Cycles | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Rated Current | |
| Rated Voltage | |
| Standard Package Quantity | |
| Tape & Reel |

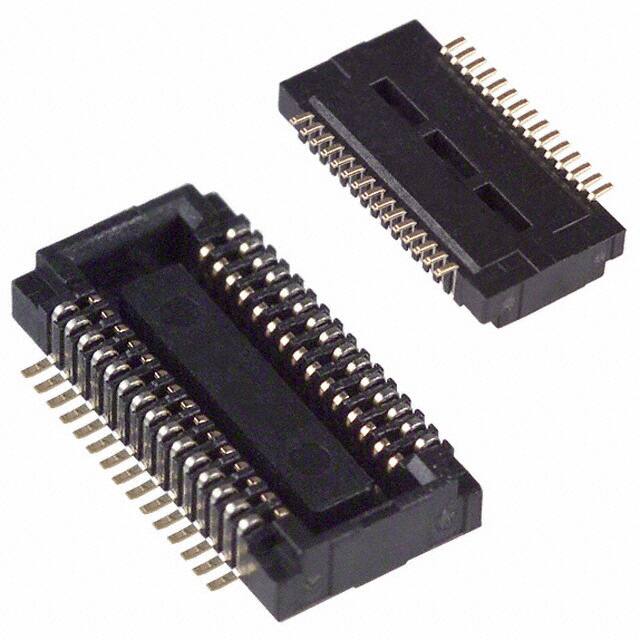

The Kyocera AVX 245602030000829 is a 30 position receptacle connector from the Series 5602 family of fine pitch SMT board to board connectors. It features a 0.4mm pitch and a mated stacking height of 1.5mm, making it suitable for high density packaging applications. The connector has a height above board of 1.45mm and uses surface mount technology for attachment.
Electrical ratings include a maximum current of 0.4A per contact and a maximum voltage of 50V. The dielectric withstanding voltage is 250V. The connector is designed for 30 mating cycles and has gold contact finish with a thickness of 0.100µm.
The connector is supplied in tape and reel packaging with 2000 pieces per reel. It is designed for use in applications such as mobile PCs, PDAs, cell phones, and digital cameras.
30 positions.
0.40mm.
0.4A maximum.
50V maximum.
Surface mount.
1.5mm.
Tape and reel, 2000 pieces per reel.
