| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current - Max | |
| Dielectric Withstanding Voltage | |
| Durability (min) | |
| Features | |
| Flammability | |
| Housing Material | |
| Industrial Grade | |
| Insulation Resistance (Min) | |
| Length | |
| Mating Force (Max per Circuit) | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Overmolding Resin | |
| Pitch | |
| Retention Force (Min) | |
| Shielding | |
| Tape & Reel | |
| Unmating Force (Max per Circuit) | |
| Voltage - Max | |
| Wire Pullout Force (Min) | |
| Wire/Cable |

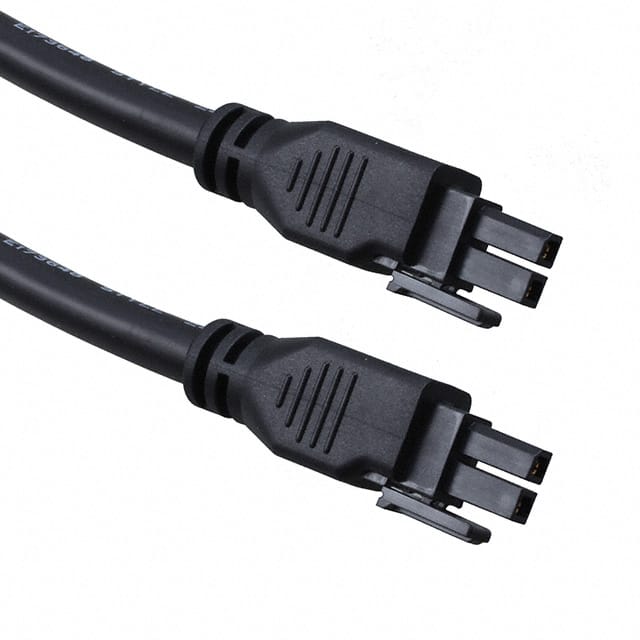

The Molex 2451360205 is a 2-circuit Mega-Fit overmolded cable assembly designed for high-current power distribution. It is rated for a maximum current of 18.4A and a maximum voltage of 300V AC/DC, with a dielectric withstanding voltage of 2000V AC and minimum insulation resistance of 10 megohms.
The assembly features a 500mm length of UL2464 black cable with 12AWG conductors, terminated with crimp contacts on both ends. The housing is made of PBT with UL 94V-0 flammability rating, and contacts are copper alloy with gold plating (15.0µin). The overmolding resin is black PVC, providing strain relief and a ruggedized interface.
Mechanical specifications include a minimum retention force of 30.0N, maximum mating force of 6.0N per circuit, and minimum durability of 200 cycles. The assembly is unshielded, free hanging (in-line), and features a latch lock for secure mating. Operating temperature range is -20 to +80°C.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $9.10 | $9.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V AC/DC.
18.4A.
-20 to +80°C.
RoHS3 Compliant (unverified).
500.00mm (1.64 feet).
Socket to socket.
UL 94V-0.
