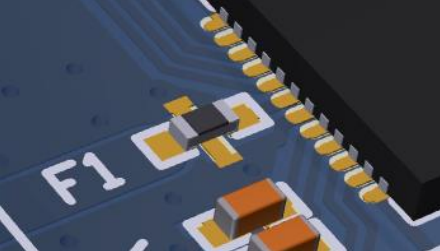

The Johanson Technology 2450FM07A0029 is a 2.4 GHz impedance-matched RF filter specifically designed for use with Nordic Semiconductor nRF52 Series QFN chipsets, including models like nRF52832 and nRF52810. This filter operates within a 2400-2500 MHz passband, making it suitable for various 2.4GHz applications such as WiFi, Bluetooth, and Zigbee.
Key electrical specifications include a maximum insertion loss of 0.8 dB and a minimum return loss of 10 dB within the passband. The filter also provides significant attenuation at higher frequencies, with a minimum of 20 dB at 4800-5000 MHz and 18 dB at 7200-7500 MHz. It has a power capacity of 2W (CW) and operates over a temperature range of -40 to +85 °C.
Packaged in an EIA 0402 SMD (1.0mm x 0.5mm x 0.4mm) with Nickel Tin termination, this filter is designed for surface mounting. Recommended storage conditions for unused tape and reel product are 45%-75% RH at +5 to +35 °C for up to 18 months.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The passband is 2400 to 2500 MHz.
It provides 50Ω impedance on both transceiver and antenna sides.
Maximum insertion loss is 0.8 dB across the 2400-2500 MHz passband.
The filter handles up to 2 W continuous wave power.
-40°C to +85°C.
EIA 0402 SMD package, 1.0 mm x 0.5 mm x 0.4 mm, with nickel-tin terminations.
Attenuation is 20 dB min / 23 dB typ at 4800-5000 MHz and 18 dB min / 12 dB typ at 7200-7500 MHz.
