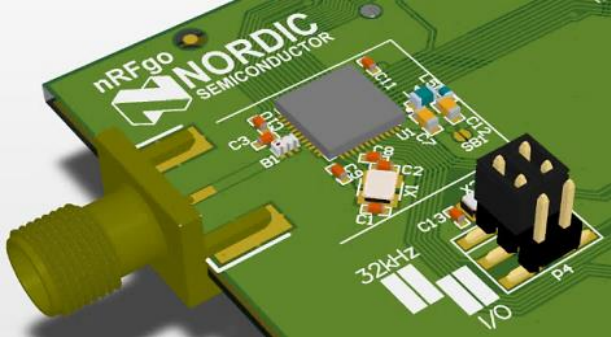

This Johanson Technology 2450BM14E0003 is an integrated passive component functioning as a balun and band-pass filter. It is specifically optimized for use with Nordic Semiconductor chipsets such as the nRF51822 and nRF51422 series.
The device features a 2400-2500 MHz passband with a nominal impedance match of 50 Ohms on the antenna side and a balanced impedance on the transceiver side. It offers a typical insertion loss of 2.1 dB within the passband and a typical return loss of 15 dB.
Designed for 2.4GHz applications including WiFi, Bluetooth, and Zigbee, this balun comes in an EIA 0603 SMD package measuring 1.6mm x 0.8mm x 0.6mm. It can operate in temperatures ranging from -40°C to +105°C. The termination style is Nickel Tin.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The passband for the 2450BM14E0003 balun is 2400-2500 MHz.
The unbalanced impedance on the antenna side is 50 Ohms, and it has a balanced impedance on the transceiver side.
The typical insertion loss for the 2450BM14E0003 balun in the 2400-2500 MHz range is 2.1 dB.
The 0603 SMD package has dimensions of 1.6mm x 0.8mm x 0.6mm.
The operating temperature range is -40°C to +105°C.
