| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Impedance | |
| Mounting Type | |
| Operating Temperature | |
| Return Loss | |
| Termination Style |

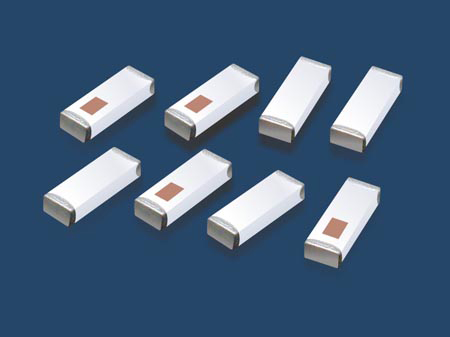

The Johanson Technology 2450AT18D0100002E is a miniature RF ceramic chip antenna operating in the 2.4 to 2.5 GHz frequency range, making it suitable for Bluetooth and WLAN applications. It is constructed using Low Temperature Co-fired Ceramic (LTCC) technology, providing high detuning resilience and stability over extreme temperatures.
This antenna features a 50 Ohm impedance and a minimum return loss of 6 dB. It offers a minimum peak gain of 1.5 dBi and a typical average gain of -1.0 dBi, with a typical average radiated efficiency of 72%. The maximum power capacity is 3W (CW).
The 2450AT18D0100002E is designed for SMD mounting and comes in an EIA 1206 case size. It is RoHS compliant and AEC-Q200 qualified, suitable for automotive applications. Recommended mounting locations include circular PCB, center-edge, or thin edge configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40 to +125 °C.
The dimensions are 3.20 x 1.60 x 1.20 mm.
The passband frequency is 2400-2500 MHz.
The impedance is 50 Ohms.
The minimum peak gain is 1.5 dBi.
The typical average radiated efficiency is 72%.
The RoHS status is RoHS3 Compliant.
