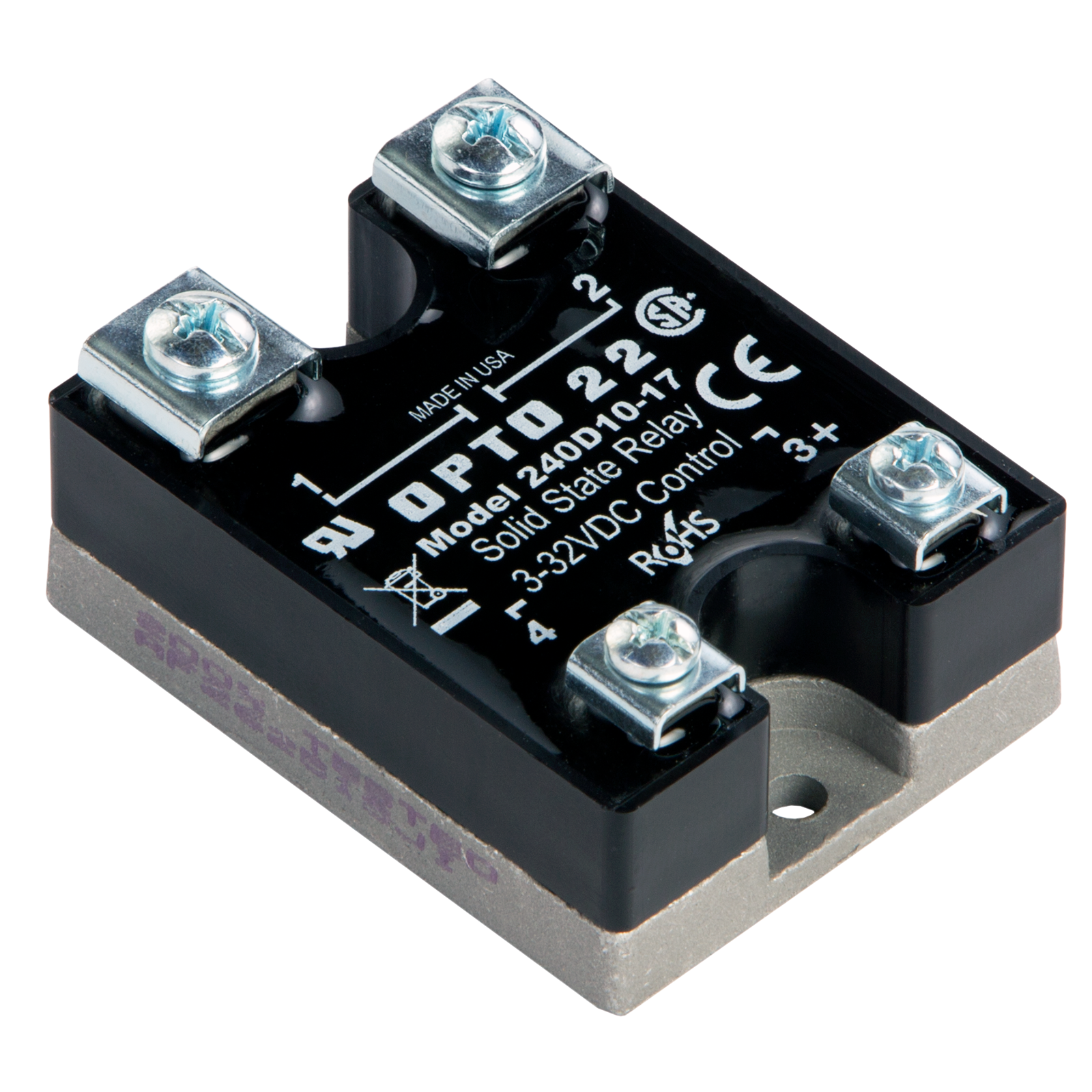

The Opto 22 240D10-17 is a solid state relay (SSR) designed for 240 VAC applications with a 10 Amp current rating. This DC control SSR features optical isolation with 4,000 V RMS input to output isolation.
Key electrical specifications include a nominal AC line voltage of 240 VAC and a nominal current rating of 10 Amps. It has a surge current rating of 110 Amps peak for 1 cycle. The turn-on and turn-off times are both a maximum of ½ cycle. The operating frequency range is 25 to 65 Hz, with operation at 400 Hz possible with increased leakage.
This SSR has a maximum output voltage drop of 1.6 volts and a maximum off-state leakage of 14 mA. The operating voltage range is 24-280 VAC. It is UL and CSA recognized, a CE component, and UKCA certified. Note that this part is for replacement use only; for new development, the 240D10 SSR is recommended as it is manufactured identically with the same specifications.
Opto 22 provides a lifetime warranty on this SSR. It is not recommended for mounting the terminal side to a flat PCB due to potential variations in terminal height.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.50 | $53.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the 240D10-17 is 24-280 VAC.
The nominal current rating for the 240D10-17 is 10 Amps.
The isolation voltage is 4000 V RMS.
The turn-on time is a maximum of ½ cycle, and the turn-off time is also a maximum of ½ cycle.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
