| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
93 pcs
|
93 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Insulation Resistance | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| Protection Features | |
| RPM | |
| Rated Current | |
| Rotation | |
| Static Pressure | |
| Storage Temperature | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

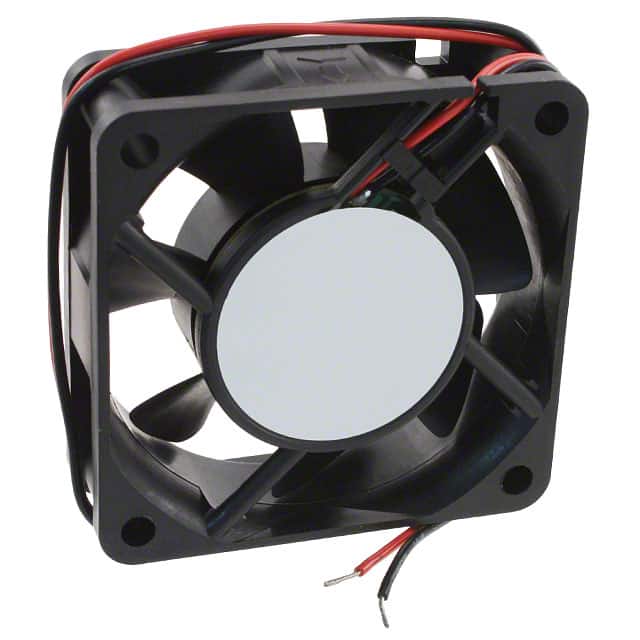

The NMB Technologies 2408NL-04W-B50-P00 is a tubeaxial DC brushless fan designed for efficient thermal management. It measures 60mm x 60mm x 20mm and operates at a nominal 12VDC with a voltage range of 6.0 to 13.8V. The fan draws 0.11A and consumes 1.32W, delivering 17.6 CFM (0.493 m³/min) of airflow at 4400 RPM with a static pressure of 0.162 in H₂O (40.5 Pa). Noise output is 31.5 dB. The fan uses a ball bearing system for long life and reliability. It features two wire leads (UL1007, AWG24, red positive, black negative) and includes auto restart and polarity protection. The casing and impeller are made of black plastic rated UL94V-0. Operating temperature range is -10°C to 70°C, with storage from -40°C to 70°C. The fan is approved by CE, CSA, UL, and VDE.
6.0 to 13.8 VDC.
60mm x 60mm x 20mm.
-10°C to 70°C.
RoHS3 Compliant (unverified).
17.6 CFM (0.493 m³/min).
Ball bearing.
31.5 dB.
