| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Insulation Resistance | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Rated Current | |
| Static Pressure | |
| Storage Temperature | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

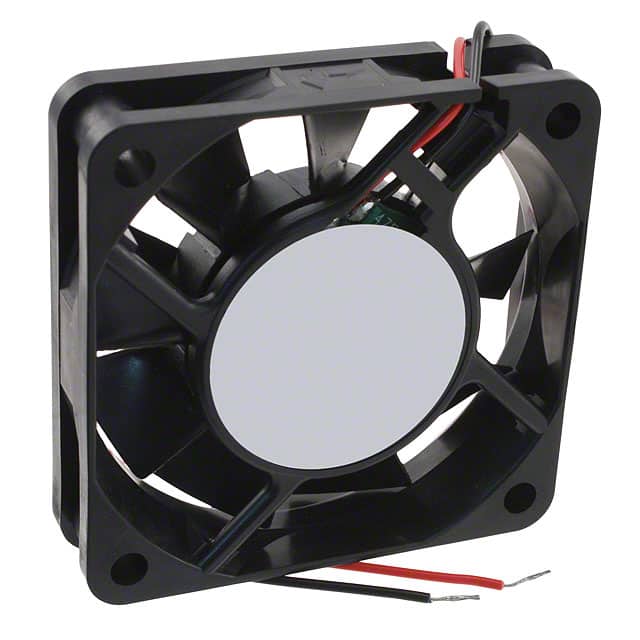

The 2406KL-04W-B40-L00 is a DC axial fan manufactured by NMB Technologies. It features a 60mm x 60mm x 15mm frame size and operates at a nominal voltage of 12VDC with a voltage range of 6.0 to 13.8V. The fan delivers an airflow of 15.9 CFM (0.445 m³/min) with a static pressure of 0.159 in H2O (39.6 Pa) at a speed of 4100 RPM. It consumes 1.56W of power and draws 0.13A current. The noise level is rated at 31.0 dB. The fan uses a ball bearing system for reliability and has an expected life of 70,000 hours at 25°C (L10/B10). It includes auto restart and polarity protection. The fan is terminated with 2 wire leads (UL1007, AWG26, red positive, black negative). It is approved by CE, CSA, UL, and VDE. The operating temperature range is -10°C to +60°C, and storage temperature is -40°C to +60°C. The fan is suitable for cooling applications in electronics, telecommunications, and industrial equipment. The casing and impeller are made of plastic (UL94V-0). The fan weighs 44.91g.
6.0 to 13.8 VDC.
-10°C to +60°C.
Yes, RoHS3 compliant (unverified).
15.9 CFM (0.445 m³/min) airflow, 39.6 Pa static pressure.
70,000 hours at 25°C (L10/B10).
Ball bearing.
CE, CSA, UL, VDE.
