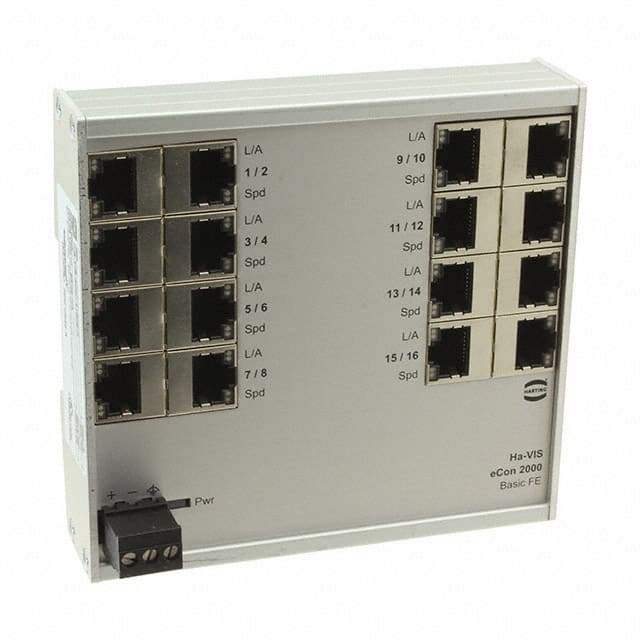

24020160010 The HARTING 24020160010 is an unmanaged 16-port Fast Ethernet switch designed for industrial applications. It features a DIN rail mounting type and supports a 24/48VDC voltage supply.
Mfr Part #:

24020160010

Available from 1 distributors
Mfr Name: Harting
Harting
The HARTING 24020160010 is an unmanaged 16-port Fast Ethernet switch designed for industrial applications. It features a DIN rail mounting type and supports a 24/48VDC voltage supply.
✓ Total Stock: 1 pcs
$ Price Range: $0.75

24020160010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

24020160010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Connector Type
Copper Ports
Copper Type
Data Rate
Height
Ingress Protection
Length
Material
Mounting Type
Number of Contacts
Number of Ports
Operating Temperature
Power Consumption
Prop 65
Relative Humidity
Storage Temperature
Termination Method
Type
Voltage
Width
View Similar Products (0)

24020160010 Description

Short technical summary and product information.

The HARTING 24020160010, part of the Ha-VIS eCon 2000 family, is an unmanaged Fast Ethernet switch offering 16 ports for network expansion. It operates within a commercial temperature range of 0°C to 55°C and supports a wide voltage supply of 24/48 VDC.



This switch utilizes a Store and Forward switching technology with a 2 kByte frame size and an 8k entry MAC table. It features auto-negotiation, auto-polarity, and auto-MDI(X) for simple plug-and-play installation. The device is designed for DIN rail assembly according to EN 60715, making it suitable for control cabinets.



Key technical characteristics include non-blocking architecture, Quality of Service (QoS) support, and Energy-Efficient Ethernet capabilities. It also includes surge protection and reverse polarity protection for enhanced reliability in industrial environments. The enclosure is made of anodized aluminum and has an IP30 degree of protection.

24020160010 Quick Information

Product Type: Ethernet Switch
Series: Ha-VIS eCon 2160B-A
Canonical Name: Harting Ha-VIS eCon 2160B-A Unmanaged Fast Ethernet Switch
Subcategory: Unmanaged Fast Ethernet Switch

24020160010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

24020160010 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

24020160010 Features

  • 16-port unmanaged Fast Ethernet switch.
  • Supports 10/100 Mbit/s data rates.
  • 0°C to 55°C operating temperature range.
  • 24/48 VDC wide voltage supply.
  • DIN rail mounting for control cabinets.

24020160010 Applications

  • Ideal for industrial network infrastructure.
  • Suitable for automation technology.
  • Used in machinery and robotics.
  • Applicable in transportation systems.

24020160010 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for this switch?

The operating temperature range is 0°C to 55°C.

What voltage does this switch operate on?

This switch operates on a nominal voltage of 24 VDC or 48 VDC, with a permissible range of 9 to 60 VDC.

Is this switch RoHS compliant?

Yes, this switch is RoHS3 Compliant.

What is the moisture sensitivity level (MSL) for this component?

The moisture sensitivity level is 1.

What type of mounting does this switch use?

This switch uses DIN rail mounting.

How many Ethernet ports does this switch have?

This switch has 16 Ethernet ports.

What is the data rate supported by the Ethernet ports?

The Ethernet ports support data rates of 10 Mbit/s and 100 Mbit/s.
