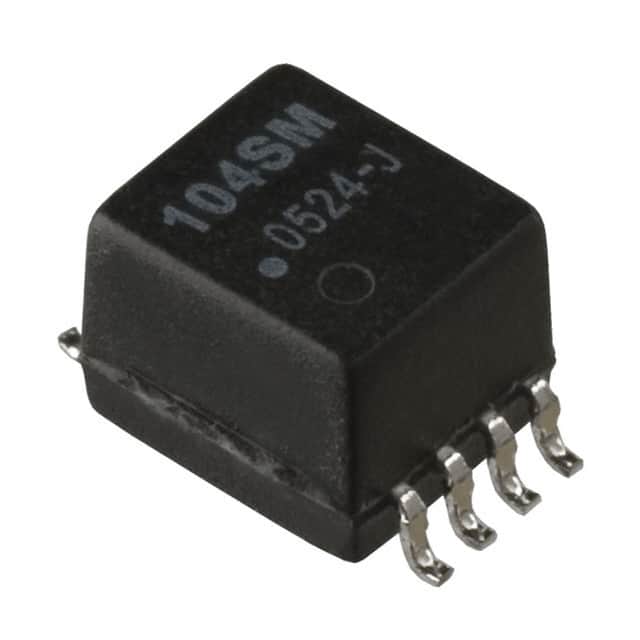

The 23Z104SMNLT is a 4-line signal line common mode choke manufactured by Pulse Electronics. It is designed for surface mount assembly in an 8-SOIC package measuring 5.84mm by 6.73mm with a maximum height of 5.59mm.
This component features a maximum DC resistance of 200mOhm per line, making it suitable for signal line filtering applications where low power loss is important. The 4-line configuration allows for compact filtering of multiple signal pairs in a single component.
The surface mount 8-SOIC package enables automated assembly and is compatible with standard reflow soldering processes. The component is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.21 | $3.21 |
| 10+ | $2.64 | $2.64 |
| 25+ | $2.30 | $2.30 |
| 100+ | $2.17 | $2.17 |
| 250+ | $2.01 | $2.01 |
| 500+ | $1.90 | $1.90 |
| 750+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 23Z104SMNLT comes in an 8-SOIC (0.265", 6.73mm Width) surface mount package.
The maximum DC resistance is 200mOhm.
It filters 4 lines.
Yes, it is listed as RoHS3 Compliant.
