| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

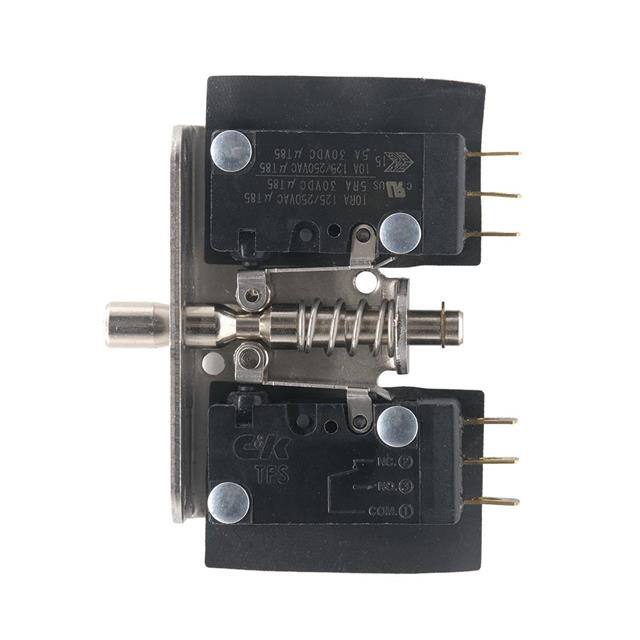

The C&K Components 23SL40410 is a DPDT (Double Pole Double Throw) sealed interlock door switch designed for robust applications. It features a chassis mount for secure installation and a quick connect termination style with 0.187" (4.7mm) contacts.
This switch offers a contact rating of 10A at 125/250 VAC and 5A at 30VDC, with a voltage rating of 125V AC. The operating temperature range is from -40°C to 85°C, making it suitable for various environmental conditions. It has an electrical life of 10,000 cycles and a mechanical life of 1,000,000 operations.
The actuator type is a push-pull plunger, and the switch function is On-On-Mom. The switch materials include a stainless steel mounting bracket and plunger, with a nylon case and PBT cover. Typical applications include industrial equipment, panel builders, and industrial enclosures.
Key specifications include a mechanical operating frequency of 120 operations per minute, insulation resistance of 100 MΩ min. at 500 VDC, and dielectric strength of 1,500 VAC.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The current rating is 10A AC and 5A DC.
The voltage rating is 125V AC.
The circuit type is DPDT.
The mechanical life is 1,000,000 operations.
