| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Rated Current | |
| CSA Rated Voltage | |
| Clamping Spring Material | |
| Color | |
| Contact Material | |
| Current | |
| Drilled Hole Diameter | |
| Fine-stranded Conductor with Insulated Ferrule | |
| Fine-stranded Conductor with Uninsulated Ferrule | |
| Fire Load | |
| Flammability Class | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Solder Pins per Potential | |
| Pitch | |
| Positions Per Level | |
| Rated Current (IEC) | |
| Rated Current (UL) | |
| Rated Surge Voltage | |
| Rated Voltage (IEC) | |
| Rated Voltage (UL) | |
| SVHC Present | |
| Solder Pin Dimensions | |
| Solder Pin Length | |
| Storage Temperature | |
| Strip Length | |
| Termination Style | |
| Voltage | |
| Weight | |
| Wire Cross Section (Solid) | |
| Wire Gauge | |
| Wire Gauge (Existing DB) | |
| Wire Gauge - Solid | |
| Wire Termination |

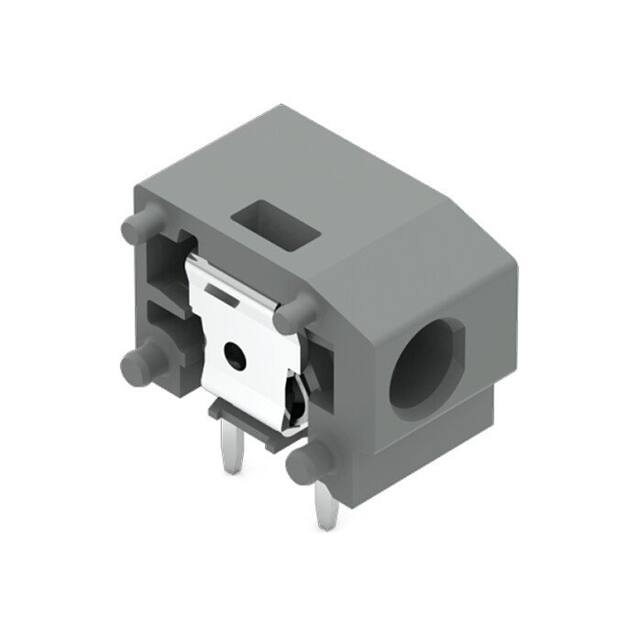

The Wago 235-756 is a 1-pole stackable PCB terminal block from the 235 series, designed for custom terminal strip assemblies. It features PUSH WIRE push-in spring connection for fast, tool-free termination of solid conductors from 0.5 to 2.5 mm² (20 to 14 AWG). The pin spacing is adjustable between 7.5 mm and 7.62 mm by compressing or pulling apart terminal strips, allowing metric or inch compatibility.
Electrical ratings include 24 A at 400 V (IEC/EN 60664-1, overvoltage category III, pollution degree 3) and 10 A at 300 V (UL 1059, use group B). The terminal block is rated for a surge voltage of 6 kV. It accepts fine-stranded conductors with insulated or uninsulated ferrules from 0.25 to 1.5 mm².
The housing is made of orange polyamide PA66 with a V0 flammability rating per UL94. Contacts are electrolytic copper with tin plating, and the clamping spring is chrome-nickel spring steel. The component is through-hole mounted with two solder pins per potential (0.8 x 0.4 mm, 3.6 mm length) for high mechanical stability. The drilled hole diameter is 1.0 mm (+0.1 mm). Weight is 0.9 g.
The pin spacing is 7.5/7.62 mm, adjustable by compressing or pulling apart terminal strips.
Rated current is 24 A per IEC/EN 60664-1 and 10 A per UL 1059 (use group B).
Rated voltage is 400 V (IEC, overvoltage category III, pollution degree 3) and 300 V (UL 1059, use group B).
Through-hole mounting with two solder pins per potential.
Solid conductors: 0.5-2.5 mm² (20-14 AWG). Fine-stranded with ferrule: 0.25-1.5 mm².
Housing is polyamide PA66 with a V0 flammability rating per UL94.
