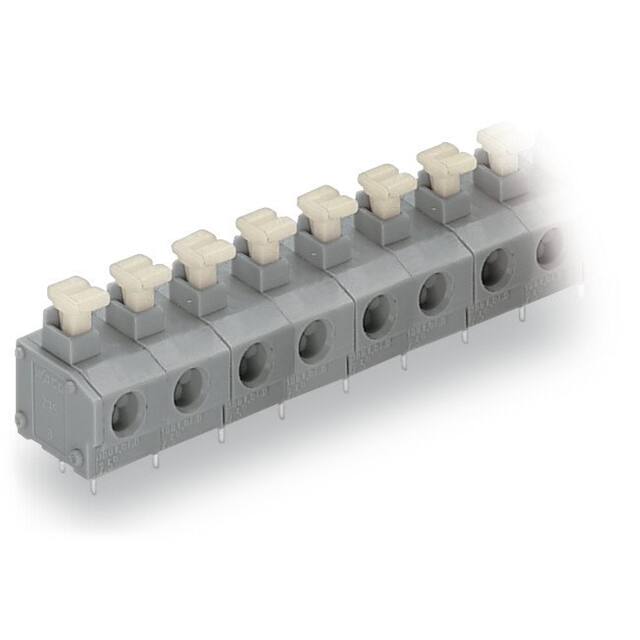

235-505/331-000 This is a 5-pole PCB terminal block with a 7.62 mm pitch, featuring Push-in CAGE CLAMP termination for tool-less solid and ferrule wire connection. It is rated for 10 A (UL) and 300 V (UL).
Mfr Part #:

235-505/331-000

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
This is a 5-pole PCB terminal block with a 7.62 mm pitch, featuring Push-in CAGE CLAMP termination for tool-less solid and ferrule wire connection. It is rated for 10 A (UL) and 300 V (UL).
✓ Total Stock: 118 pcs

235-505/331-000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
118 pcs
On Request
118 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

235-505/331-000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Dimensions
Features
Lead Spacing
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

235-505/331-000 Description

Short technical summary and product information.

The Wago 235-505/331-000 is a 5-pole PCB terminal block from the 235 Series, designed for tool-less, push-in wire termination. It accepts solid conductors from 0.2 to 1.5 mm² and fine-stranded conductors with ferrules. The push-button actuation allows for easy wire release. With a pitch of 7.62 mm and a single level, this through-hole component offers a compact footprint measuring 39 x 19.1 x 12.5 mm. Connections are made at a 0° angle to the board. The gray housing provides clear identification in industrial control panels.

235-505/331-000 Quick Information

Product Type: PCB Terminal Block
Canonical Name: PCB terminal block, 5-pole, 7.62 mm pitch, Push-in CAGE CLAMP, through hole, gray
Subcategory: Wire to Board

235-505/331-000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

235-505/331-000 Features

  • 5-pole single-level PCB terminal block.
  • 7.62 mm pin spacing for reliable connections.
  • Tool-less Push-in CAGE CLAMP wire termination.
  • Rated for 10 A (UL) and 300 V (UL).
  • Through-hole mount with gray plastic housing.

235-505/331-000 Applications

  • Ideal for industrial control panel wiring.
  • Used in power supply and distribution boards.
  • Suitable for building automation applications.

235-505/331-000 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block have?

It has 5 positions (5-pole).

What is the pitch of the Wago 235-505/331-000?

The pin spacing (pitch) is 7.62 mm.

What is the current rating for this terminal block?

The UL rating is 10 A. The IEC rating is 17.5 A and the CSA rating is 15 A.

What voltage rating does it support?

The UL rating is 300 V. IEC ratings are up to 1000 V depending on overvoltage category and pollution degree.

What is the mounting type?

This terminal block is a through-hole (THT) component.
