| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
630 pcs
|
630 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Color | |
| Current | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

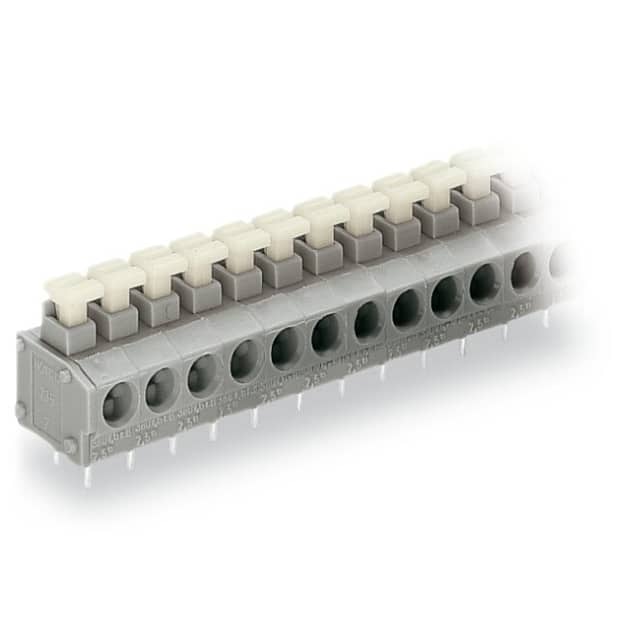

The Wago 235-405/331-000 is a 5-position PCB terminal block designed for wire-to-board connections. It features a push-button actuated, screwless push-in CAGE CLAMP termination system that accepts 14-20 AWG (1.5 mm²) solid or stranded wires. The terminal block is rated for 10 A at 300 V and has a single level with a 5.08 mm pin spacing.
This through-hole component mates horizontally with the PCB, making it suitable for compact board layouts. The gray housing incorporates a push-button actuator for tool-free wire insertion and release. The Push-in CAGE CLAMP technology ensures a reliable, vibration-resistant connection without the need for screw tightening.
With a 5-pole configuration and 5.08 mm pitch, this terminal block is commonly used in industrial control, building automation, and power distribution applications. The 1.5 mm² wire cross section rating supports 14-20 AWG conductors.
5 positions per level.
5.08 mm (0.200 in).
10 A at 300 V.
14-20 AWG (1.5 mm²).
Screwless push-in CAGE CLAMP with push-button actuation.
Through hole with horizontal mating orientation.
