| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Large Diameter Recovered | |
| Large Diameter Supplied | |
| Material | |
| Military Grade | |
| SVHC Present | |
| Shell Size | |
| Small Diameter Recovered | |
| Small Diameter Supplied | |
| Type |

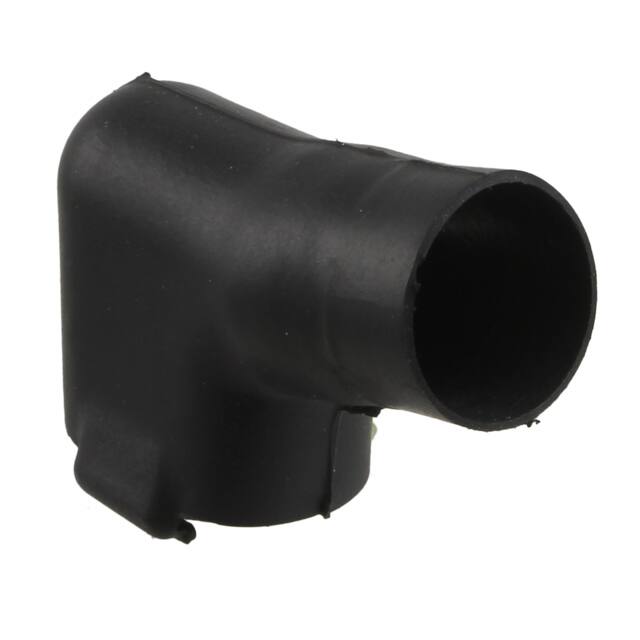

The TE Connectivity 234A011-3-0 is a heat shrinkable rectangular boot with a 90° right angle design, intended for use with connectors of shell size 11. It is molded from semi-rigid black polyolefin, a material commonly chosen for its balance of flexibility and mechanical protection in wire harness and cable assembly applications.
Key dimensional specifications: the large end has a supplied inner diameter of 0.800" (20.32mm) and recovers to the same 0.800" (20.32mm), indicating a non-recovering large end. The small end is supplied at 0.311" (7.90mm) and recovers to 0.161" (4.09mm), providing a tight seal around wires or cables passing through the boot.
This boot is designed to provide strain relief, environmental sealing, and electrical insulation at the backshell of circular connectors. The right angle configuration helps route cables in tight spaces where straight boots would not fit. The black color is standard for many industrial and military applications.
Shell size 11.
Black semi-rigid polyolefin (PO).
Large end: 0.800" supplied and recovered. Small end: 0.311" supplied, 0.161" recovered.
RoHS3 Compliant (unverified, low confidence).
REACH Unaffected (unverified, low confidence).
