Mfr Part #:

234-504

PCB terminal block with 4 poles, 2.54 mm pitch, and CAGE CLAMP connection. Push-button actuation, rated for 4A (UL) and 150V (UL), suitable for 20-28 AWG solid and fine stranded conductors.

✓ Total Stock: 370 pcs

234-504 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Seba Components ✓ Non-Authorised Inventory information	370 pcs On Request	370 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

234-504 Description

Short technical summary and product information.

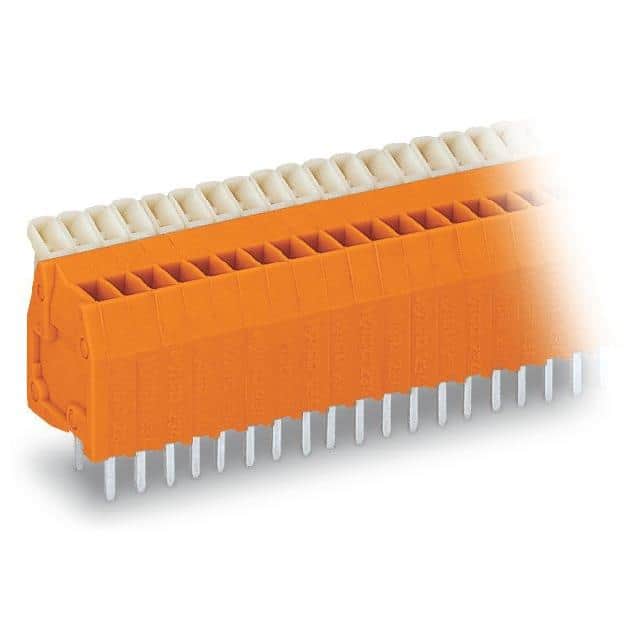

The Wago 234-504 is a 4-pole PCB terminal block from the 234 Series, featuring CAGE CLAMP connection technology. It has a push-button actuation for easy wire insertion. The pitch is 2.54 mm, making it suitable for compact PCB layouts.

Electrical ratings: UL rated 4A at 150V, IEC rated 6A at 320V (pollution degree 2, overvoltage category II). Rated impulse withstand voltage 2.5 kV. Accepts solid and fine stranded conductors from 0.08 to 0.5 mm² (20-28 AWG). Strip length 5-6 mm.

Mechanical: Through-hole mounting with vertical orientation relative to board. Dimensions: 12.36 mm width, 18 mm height, 14.4 mm depth. Solder pin length 4 mm. Orange color, contact surface tin plated.

Applications: Ideal for wire-to-board connections in industrial control, building automation, and lighting systems. The CAGE CLAMP connection provides vibration-resistant and maintenance-free connections.

234-504 Quick Information

Product Type: PCB Terminal Block

Series: 234 Series

Canonical Name: Wago 234-504 PCB Terminal Block, 4-Pole, 0.08-0.5 mm², Push-button, CAGE CLAMP, Orange

Subcategory: Wire to Board Terminal Block

234-504 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

234-504 Features

4-pole PCB terminal block with 2.54 mm pitch.
CAGE CLAMP connection for secure wire termination.
Push-button actuation for easy wire insertion.
Rated 4A at 150V (UL) and 6A at 320V (IEC).
Accepts 20-28 AWG solid and stranded wires.

234-504 Applications

Ideal for wire-to-board connections in control panels.
Used in building automation and lighting systems.
Suitable for compact PCB layouts with 2.54 mm pitch.

234-504 FAQs

7 frequently asked questions generated from this part’s specifications.

How many poles does the 234-504 have?

4 poles.

What is the pin spacing (pitch) of the 234-504?

2.54 mm.

What is the current rating of the 234-504?

4 A (UL) and 6 A (IEC).

What is the voltage rating of the 234-504?

150 V (UL) and 320 V (IEC).

What is the mounting type of the 234-504?

Through hole (THT) mounting.

What wire sizes does the 234-504 accept?

Solid and fine stranded conductors from 0.08 to 0.5 mm² (20-28 AWG).

What connection technology does the 234-504 use?

CAGE CLAMP connection with push-button actuation.

Category	Wire to Board
Manufacturer Name	Wago Corporation
Actuation Type	Push-button
Color	Orange
Connection Technology	CAGE CLAMP
Contact Plating	Tin
Current	4 A
Current Rating (IEC)	6 A
Current Rating (UL)	4 A
Depth	14.4 mm
Features	Push Button Actuated
Fine-Stranded Conductor Range	0.08-0.5 mm²
Height	18 mm
Lead Spacing	2.54 mm
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Number of Poles	4
Pitch	2.54 mm
Positions Per Level	4
Rated Impulse Withstand Voltage	2.5 kV
Solder Pin Length	4 mm
Solid Conductor Range	0.08-0.5 mm²
Strip Length	5-6 mm
Voltage	150 V
Voltage Rating (IEC)	320 V
Voltage Rating (UL)	150 V
Width	12.36 mm
Wire Gauge	20-28 AWG
Wire Termination	Screwless - Push Button Clamp
