| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material | |
| Base Size | |
| Battery Cell Size | |
| Battery Type, Function | |
| Contact Material | |
| Contact Plating | |
| Lead Length Tolerance | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Style | |
| Termination Style | |
| Wire End Strip Length | |
| Wire Gauge | |
| Wire Insulation Material | |
| Wire Rating | |
| Wire Standard | |
| Wire Stranding |

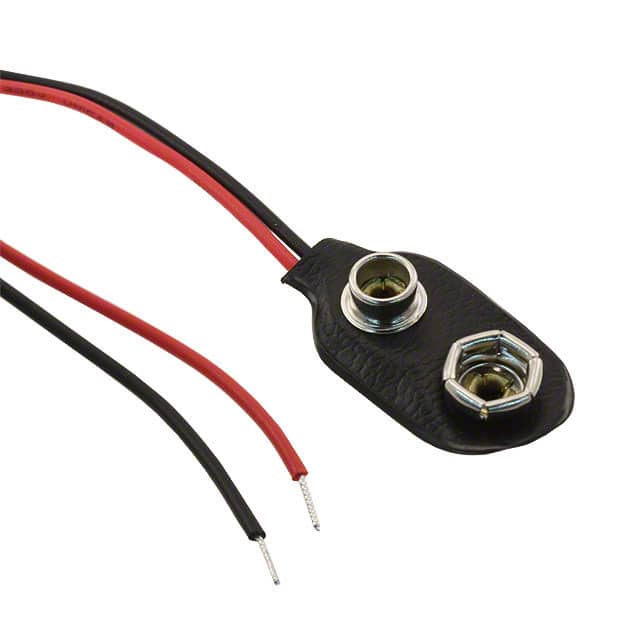

The Keystone Electronics 233 is a 9V battery snap connector designed for single-cell applications. It features a snap connector style with 6" (152.4mm) wire leads terminated in 26 AWG stranded (7/34) PVC-insulated wire rated to 300V and +176°F (+80°C). The connector uses brass contacts with nickel plating and a polypropylene base measuring 1.062" x 0.512" (27.0mm x 13.0mm).
This connector is free hanging (no mounting required) and includes a 0.250" (6.4mm) stripped and tinned wire end for easy connection. The wire leads meet UL/CSA 1007 requirements. The part is RoHS3 compliant as verified by the datasheet.
Designed for single 9V battery applications, this snap connector provides a secure connection with strain relief. The nickel-plated brass contacts ensure reliable conductivity and corrosion resistance. The polypropylene base offers durability and electrical insulation.
9V
Wire leads, 6" (152.4mm) length, 26 AWG, stripped and tinned ends.
Yes, RoHS3 compliant per the datasheet.
Free hanging (no mounting required).
Brass contacts with nickel plating.
