| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Depth | |
| Efficiency | |
| For Use With | |
| Height | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Width |

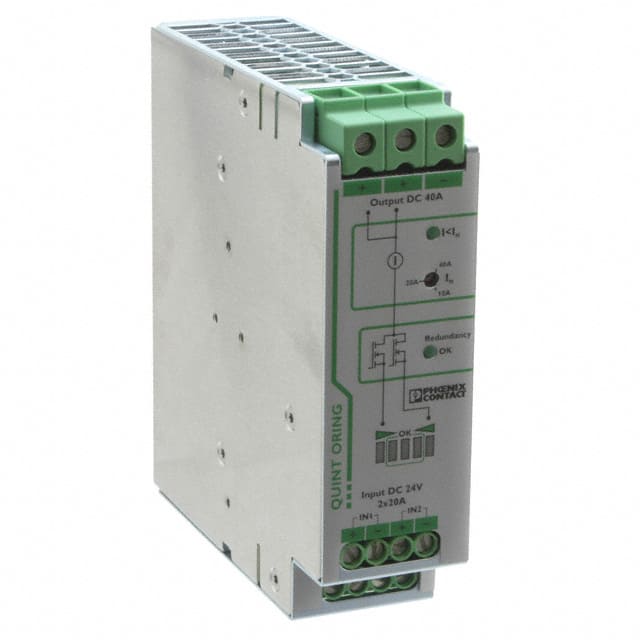

The Phoenix Contact 2320186 is an active QUINT redundancy module designed for DIN rail mounting. It features integrated SFB (selective fuse breaking) technology and monitoring functions, ensuring reliable operation.
This module accepts a nominal input voltage of 24 VDC, with an operating range of 18 VDC to 28 VDC (SELV). It can provide an output current of 40A for increasing power or 20A in redundancy mode. The module has a nominal input current of 2x 20A or 1x 40A and a maximum current of 2x 26A or 1x 52A. Efficiency is rated at over 98%.
With a width of 38 mm, height of 130 mm, and depth of 125 mm, it is suitable for standard DIN rail mounting (NS 35, EN 60715). The degree of protection is IP20, and it belongs to Protection Class III. The operating temperature range is -25 °C to 70 °C.
Key features include doubled service life for redundant solutions through uniform load distribution, energy saving, permanent monitoring of redundancy, and consistent redundancy up to the load. It conforms to EMC Directive 2004/108/EC and LV directive 2006/95/EC, with various safety standards including EN 60204, EN 60950-1, and EN 50178.
The nominal input voltage is 24 VDC.
The input voltage range is 18 VDC to 28 VDC (SELV).
The output current is 40 A for increasing power and 20 A for redundancy.
The operating temperature range is -25 °C to 70 °C.
It is designed for DIN rail mounting.
The degree of protection is IP20.
The MTBF is greater than 720,000 hours.
