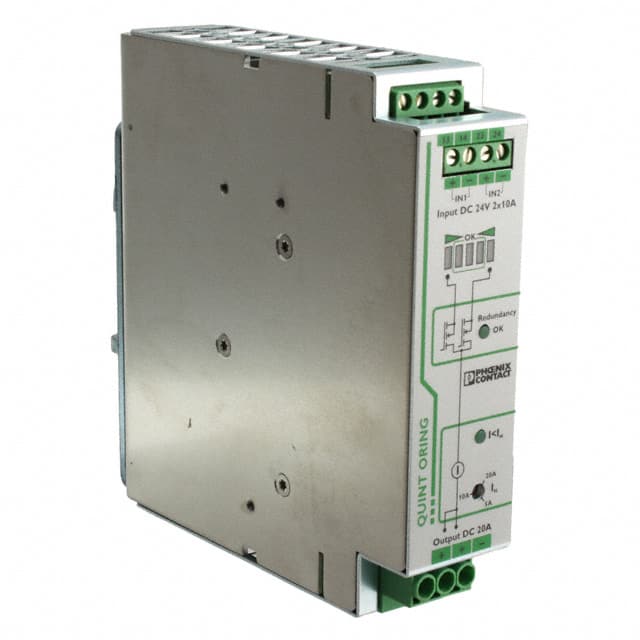

The Phoenix Contact 2320173 is an active QUINT redundancy module featuring SFB (selective fuse breaking) technology and monitoring functions. It is designed for DIN rail mounting on NS 35, EN 60715 rails, with specific alignment requirements for optimal performance.
This module accepts a nominal input voltage of 24 VDC, with an operating range of 18 VDC to 28 VDC (SELV). The output can be configured for 2x 10A in redundancy mode or 1x 20A for increased power. It offers high efficiency, exceeding 98%, and a power loss of a maximum of 2W at nominal load.
The module has a compact width of 32 mm, height of 130 mm, and depth of 125 mm. It operates within an ambient temperature range of -25 °C to 70 °C and has a degree of protection of IP20. The MTBF is rated at over 1,000,000 hours.
Compliance includes EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and various EN standards for electrical safety and equipment. It also holds UL/C-UL listings and recognitions.
The nominal input voltage is 24 VDC.
The input voltage range is 18 VDC to 28 VDC (SELV).
It supports 2x 10A in redundancy mode or 1x 20A for increasing power.
The operating ambient temperature range is -25 °C to 70 °C.
The degree of protection is IP20.
The MTBF is greater than 1,000,000 hours.
It is designed for DIN rail mounting on NS 35, EN 60715.
