| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,240 pcs
|
2240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Diameter | |
| Height | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type |

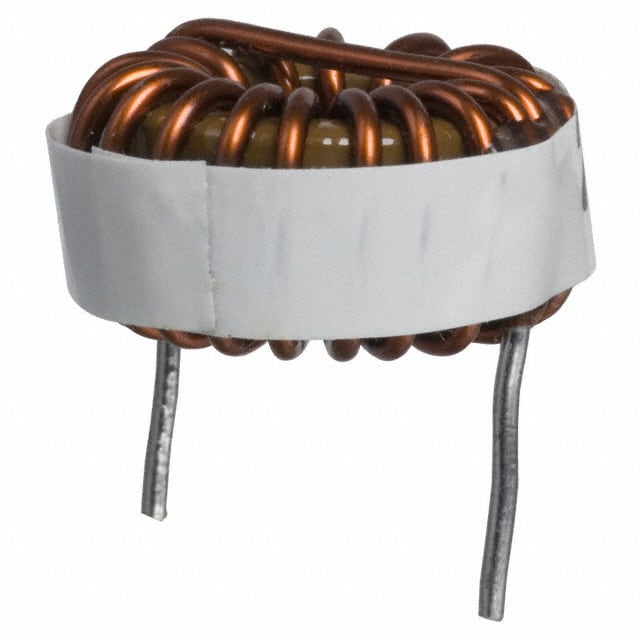

The Bourns 2316-H-RC is a fixed inductor designed for through-hole mounting. It features a toroidal core made of iron powder, providing an inductance of 220 µH with a tolerance of ±15%. The component is unshielded, making it suitable for applications where magnetic coupling is not a concern.
With a current rating of 5.8 A and a maximum DC resistance of 54 mOhm, this inductor offers efficient power handling with low losses. It operates over a temperature range of -55°C to 105°C, ensuring reliability in demanding environments. The radial horizontal package has a diameter of 32.51 mm and a height of 16.51 mm, fitting standard PCB layouts.
Commonly used in power supply filtering, DC-DC converters, and energy storage circuits, the 2316-H-RC provides a robust solution for high-current applications. Its toroidal construction minimizes electromagnetic interference, while the through-hole design ensures secure mechanical attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.01 | $4.01 |
| 10+ | $3.33 | $3.33 |
| 25+ | $3.02 | $3.02 |
| 36+ | $2.79 | $2.79 |
| 108+ | $2.56 | $2.56 |
| 252+ | $2.47 | $2.47 |
| 504+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220 µH.
5.8 A.
54 mOhm.
Radial, Horizontal (Open).
-55°C to 105°C.
Iron Powder.
No, it is unshielded.
