| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
101,000 pcs
|
101000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Altitude Operating Max | |
| Altitude Operating Min | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| DC Output Current - Auxiliary Max | |
| DC Output Current - Communications Max | |
| DC Output Current - Dimming Max | |
| DC Output Voltage - Auxiliary | |
| DC Output Voltage - Communications | |
| DC Output Voltage - Dimming | |
| Halogen Free | |
| Housing Color | |
| Housing Material | |
| Industrial Grade | |
| Input Frequency Max | |
| Input Frequency Min | |
| Input Voltage Range Max | |
| Input Voltage Range Min | |
| Lead Style | |
| Maximum AC Current | |
| Maximum Operating Temperature | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Power Consumption Max | |
| Relative Humidity Operating Max | |
| Relative Humidity Operating Min | |
| Style | |
| Surge Protection | |
| Termination |

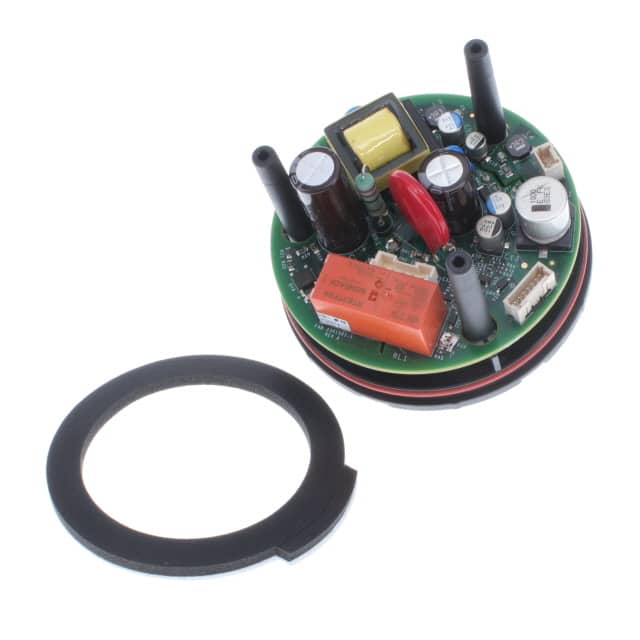

The TE Connectivity LUMAWISE Endurance N Enhanced Base (part number 2314786-1) is a lighting control base assembly designed for NEMA/ANSI street and outdoor lighting control solutions. It provides AC power switching and multiple DC power supplies to support complex control node projects.
This base features a universal AC input range of 90-300 VAC and delivers isolated DC outputs: 24 VDC for ballast control communications, 5 VDC for communications, and 3.3 VDC for auxiliary circuits. It includes integrated surge protection rated to ANSI C62.41 6 kV, 3 kA combination wave, and consumes less than 2W standby power at 277 VAC.
Mechanically, the connector has 7 positions with Poke-In termination and mounts to a PCB. The housing is made of black polybutylene terephthalate (PBT) with gold-plated copper alloy contacts. It operates over a temperature range of -40°C to +85°C and relative humidity from 15% to 96%.
This is a base - panel mount connector with 7 positions.
The universal AC input range is 90 VAC to 300 VAC at 47-63 Hz.
The base provides isolated 24 VDC (dimming, 50 mA), 5 VDC (communications, 1 A), and 3.3 VDC (auxiliary, 500 mA).
The operating temperature range is -40°C to +85°C.
The base provides surge protection rated to ANSI C62.41 6 kV, 3 kA combination wave.
