231-233/001-000 THT male header, 3 positions, 7.5 mm pitch, vertical orientation. Tin-plated contacts, gray housing. Rated 12 A IEC / 10 A UL, up to 1000 V IEC.
Mfr Part #:

231-233/001-000

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
THT male header, 3 positions, 7.5 mm pitch, vertical orientation. Tin-plated contacts, gray housing. Rated 12 A IEC / 10 A UL, up to 1000 V IEC.
✓ Total Stock: 73 pcs

231-233/001-000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
73 pcs
On Request
73 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

231-233/001-000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Depth
Header Orientation
Height
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Width
View Similar Products (0)

231-233/001-000 Description

Short technical summary and product information.

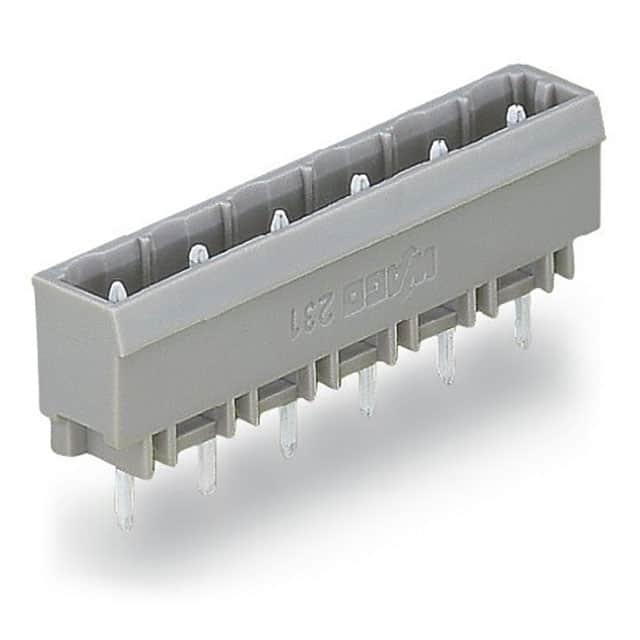

The WAGO 231-233/001-000 is a THT male header belonging to the MCS MIDI Classic series. It features 3 positions arranged in a single level with a 7.5 mm pitch. The header is designed for through-hole soldering with solder pin dimensions of 1.0 x 1.0 mm and a length of 5 mm. The housing is gray and the contact mating surface is coated with tin.



Electrical ratings per IEC/EN 60664-1 include a rated current of 12 A and rated voltage up to 1000 V depending on overvoltage category and pollution degree. Per UL 1059, the rated voltage is 300 V (use groups B and D) with a rated current of 10 A. The rated impulse withstand voltage is 6 kV.



The header includes variable coding and anti-rotation protection for secure mating. The shrouded design provides mismating protection. PCB contact is THT with an in-line solder pin arrangement. Dimensions are 23.2 mm width, 17 mm height, and 8.4 mm depth, with a height above PCB surface of 12 mm.

231-233/001-000 Quick Information

Product Type: Header, Male Pins, Shrouded
Series: 231
Canonical Name: THT Male Header, 3-Pole, 7.5 mm Pitch, Vertical, Tin Plated
Subcategory: THT Male Header

231-233/001-000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

231-233/001-000 Features

  • 3-pole THT male header with 7.5 mm pitch.
  • Rated 12 A IEC and 10 A UL.
  • Rated up to 1000 V IEC, 300 V UL.
  • Tin-plated contacts, gray housing.
  • Shrouded design with anti-rotation protection.

231-233/001-000 Applications

  • For industrial control and automation panels.
  • Used in power distribution and junction boxes.
  • Ideal for pluggable connector systems in machinery.

231-233/001-000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

The pitch is 7.5 mm.

How many positions does this header have?

It has 3 positions.

What is the rated current?

12 A per IEC/EN 60664-1; 10 A per UL 1059 and UL 1977.

What is the rated voltage?

Up to 1000 V per IEC/EN 60664-1 (depending on overvoltage category and pollution degree) and 300 V per UL 1059 (use groups B and D).

What is the mounting method?

Through-hole (THT) soldering.

What color is the housing?

Gray.

What is the operating temperature range?

-60°C to 100°C.
