| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,149 pcs
|
15149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Input | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Type | |
| Voltage |

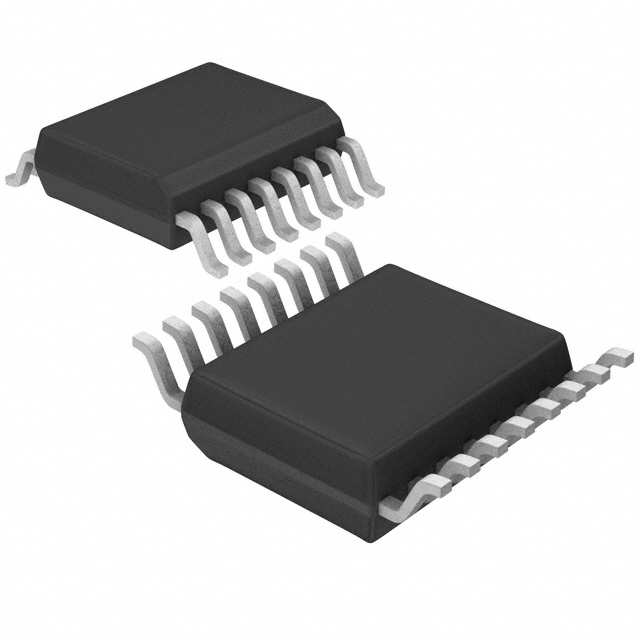

The 2308-5HPGG is a 1:8 multiplier zero delay buffer integrated circuit from Renesas. Designed for clock distribution applications, it accepts a single LVTTL input and provides eight LVTTL outputs with minimal skew. The device integrates a Phase-Locked Loop (PLL) with bypass mode, allowing either multiplied zero-delay buffering or direct feed-through operation. With a maximum frequency of 133.3 MHz, it is suitable for memory and logic clocking in computing and embedded systems. The IC operates from a 3V to 3.6V supply and is specified over a commercial temperature range of 0°C to 70°C. Housed in a 16-TSSOP surface mount package (4.40mm width), it is compatible with standard reflow processes.
The supply voltage range is 3V to 3.6V.
It is available in a 16-TSSOP surface mount package (4.40mm width).
The operating temperature range is 0°C to 70°C.
The part is listed as RoHS3 Compliant, but this status is unverified and should be confirmed against official documentation.
The maximum frequency is 133.3 MHz.
Both input and output are LVTTL logic levels.
The input to output ratio is 1:8, meaning one input drives eight outputs.
