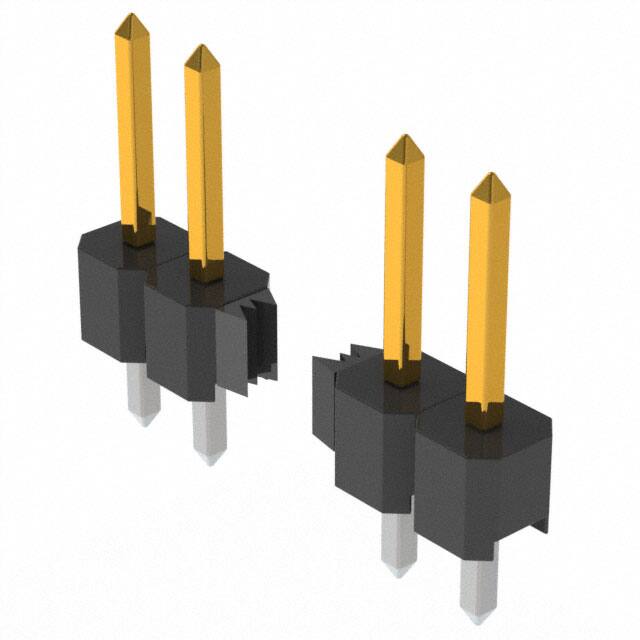

The 3M 2306-6111-TG is an unshrouded, single row pin strip header from the 2300 Series. It has 6 positions with a 2.54mm pitch and features male square pins with a wiping area plated in 0.25µm gold over a 1.27µm nickel underplating. The solder tail finish is 90/10 tin lead.
The insulator is made of glass filled thermoplastic with a UL 94 V-0 flammability rating and is colored black. The connector is designed for board to board or cable applications and uses a push-pull fastening system.
Electrical ratings include a current capacity of 3A, withstanding voltage of 100 VRMS at sea level, and insulation resistance greater than 5×10⁹ Ω at 500 VDC. The operating temperature range is -55°C to 105°C.
This header is through hole mounted with a vertical orientation. The overall contact length is 11.43mm with a mating contact length of 5.84mm. Contact material is copper alloy.
The pitch is 2.54mm.
It has 6 positions in a single row.
The current rating is 3A.
The mounting type is through hole with solder tail termination.
The operating temperature range is -55°C to 105°C.
The wiping area contact finish is gold (0.25µm) over a nickel underplating.
