| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2018-06-22 00:00:00 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

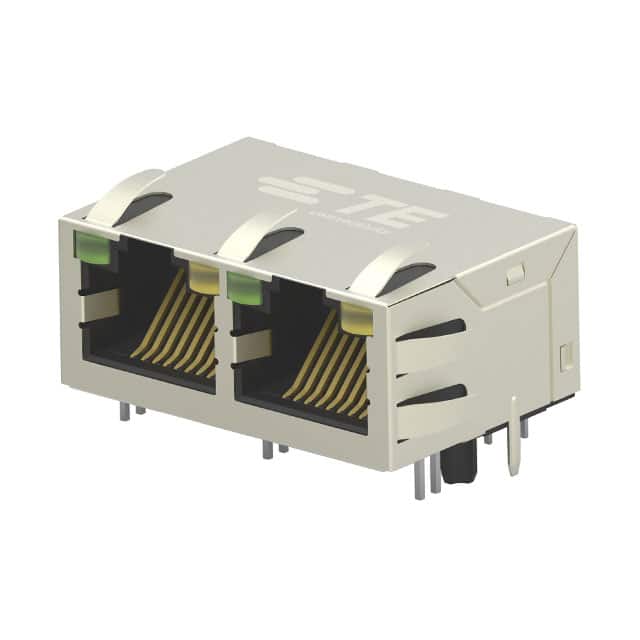

The TE Connectivity 2301996-7 is a 2-port RJ45 jack with integrated magnetics designed for through hole PCB mounting. It features a right-angle orientation with the tab facing up, and includes 8 contacts per port with gold-plated copper alloy contacts for reliable signal integrity.
The connector is shielded with an EMI finger and includes a board lock for secure attachment to the PCB. It supports 10/100/1000 Base-T Ethernet with AutoMDIX capability. The operating temperature range is -40°C to 85°C, and the height above board is 13.49mm.
This component is suitable for networking equipment requiring compact, high-speed Ethernet connectivity with integrated magnetics to simplify PCB design and reduce external component count.
This is an RJ45 connector with 2 ports.
Through hole mounting with 90° right-angle orientation, tab up.
It supports 10/100/1000 Base-T with AutoMDIX.
-40°C to 85°C.
Yes, it is shielded with an EMI finger.
Copper alloy contacts with gold plating.
Yes, it includes a board lock for secure PCB attachment.
