| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Industrial Grade | |
| LED Color | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

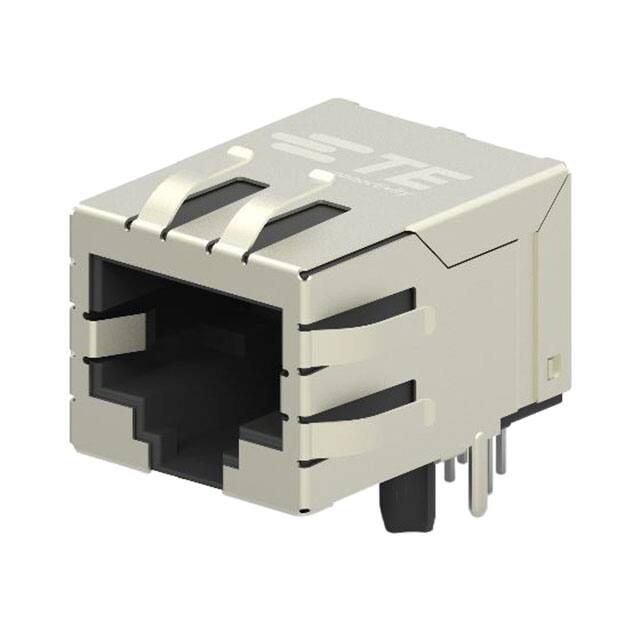

The TE Connectivity 2301994-7 is a single-port RJ45 modular connector jack with integrated magnetics, designed for high-speed Ethernet applications. It supports 10/100/1000 Base-T with AutoMDIX, making it suitable for Gigabit Ethernet networking equipment.
This connector features a right angle orientation and through hole mounting with solder termination. It is shielded with an EMI finger for enhanced electromagnetic interference protection, and includes a board lock for secure PCB attachment. The contact finish is gold over copper alloy, ensuring reliable conductivity. The operating temperature range is -40°C to 85°C.
The jack has a height above board of 13.65 mm and a tab direction of down. It does not include LED indicators. The compact single-port design is ideal for space-constrained applications requiring high data throughput.
It is an RJ45 modular connector jack with integrated magnetics.
It has 1 port.
Through hole.
Right angle (90°).
Yes, it is shielded with an EMI finger.
It supports 10/100/1000 Base-T with AutoMDIX.
-40°C to 85°C.
