| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,970 pcs
|
2970 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

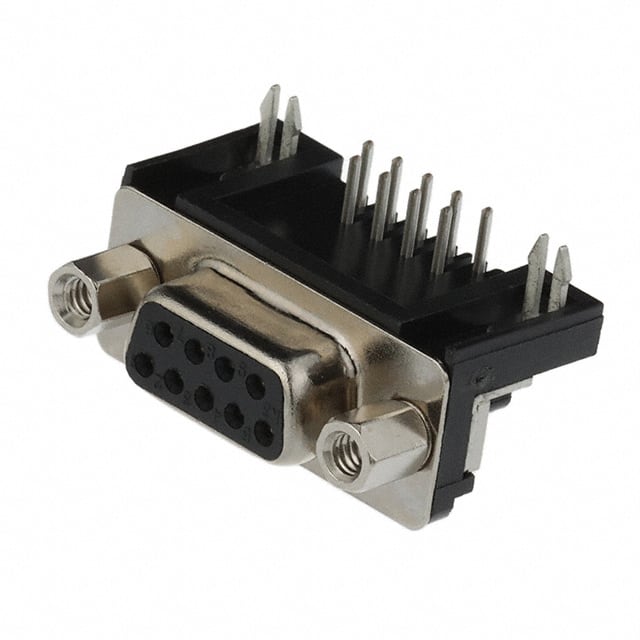

The TE Connectivity 2301844-2 is a 9-position D-Sub receptacle with female socket contacts, designed for right-angle through-hole soldering. It features a steel shell with nickel plating and a DE (E) shell size. The connector includes a board lock feature for secure attachment to the PCB and a mating-side female screwlock (4-40) flange for reliable mating.
Electrical rating is 2A per contact with gold-plated signal contacts (15.0µin gold finish). The insulator material carries a UL94 V-0 flammability rating. The backset spacing is 0.411 inches (10.43mm). This connector is suitable for signal-level interconnections in a wide range of electronic equipment.
Receptacle, Female Sockets; D-Sub style.
9 positions arranged in 2 rows.
Through hole, right angle with solder termination.
2A per contact.
Gold, 15.0µin (0.38µm) thickness.
Steel with nickel plating.
UL94 V-0.
