| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

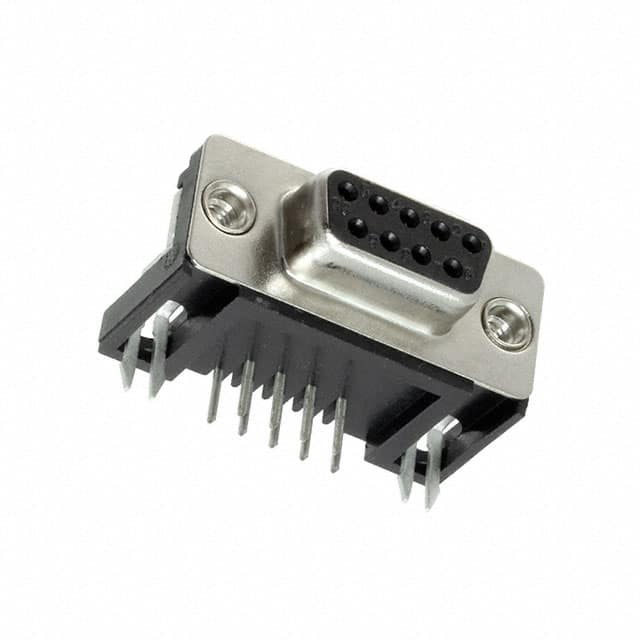

The TE Connectivity 2301844-1 is a 9-position D-Sub receptacle connector designed for reliable signal connections. It features a female socket contact arrangement with 2 rows and a right angle through hole mounting style for easy soldering to printed circuit boards. The contacts are gold-plated with a thickness of 15.0µin (0.38µm), ensuring excellent conductivity and corrosion resistance. The connector includes a board lock feature for secure mechanical retention on the PCB. The shell is made of steel with a nickel plating, providing durability and shielding. The shell size is 1 (DE, E) and the flange feature is board side (4-40). The backset spacing is 0.411 inches (10.43mm). The insulator material has a flammability rating of UL94 V-0. This connector is suitable for a wide range of applications requiring compact and robust D-Sub connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.91 | $2.91 |
| 10+ | $2.57 | $2.57 |
| 25+ | $2.28 | $2.28 |
| 90+ | $2.16 | $2.16 |
| 270+ | $2.00 | $2.00 |
| 540+ | $1.93 | $1.93 |
| 1,080+ | $1.82 | $1.82 |
| 2,880+ | $1.71 | $1.71 |
| 5,760+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
2A per contact.
Through hole, right angle.
Gold, 15.0µin (0.38µm).
Steel, nickel plated.
Yes, board lock is included.
UL94 V-0.
