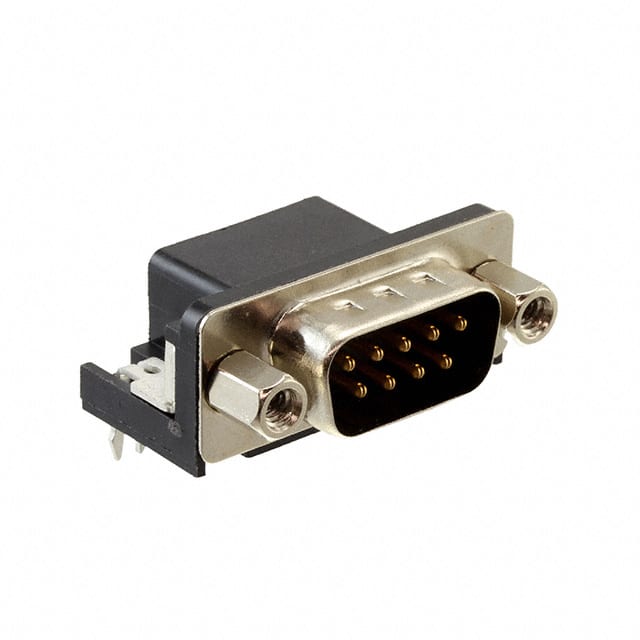

The TE Connectivity 2301843-2 is a 9-position D-Sub plug connector with male pins arranged in 2 rows. It features a right angle through hole mounting style with solder termination, making it suitable for applications where a low-profile, space-saving connection is needed on a printed circuit board.
The connector has a steel shell with nickel plating and includes board locks and grounding indents for secure attachment and improved EMI performance. The contacts are gold plated with a thickness of 15.0µin (0.38µm), providing reliable signal integrity and corrosion resistance. The insulator is rated UL94 V-0 for flammability.
This connector uses a DE (E) shell size and includes a mating side female screwlock (4-40) flange feature. The backset spacing is 0.411" (10.43mm). Each contact is rated for 2A current. The connector is designed for signal contact type applications.
Plug, Male Pins; D-Sub style.
9 positions in 2 rows.
Through hole, right angle.
2A per contact.
Gold, 15.0µin (0.38µm) thickness.
Steel, nickel plated.
UL94 V-0.
