| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

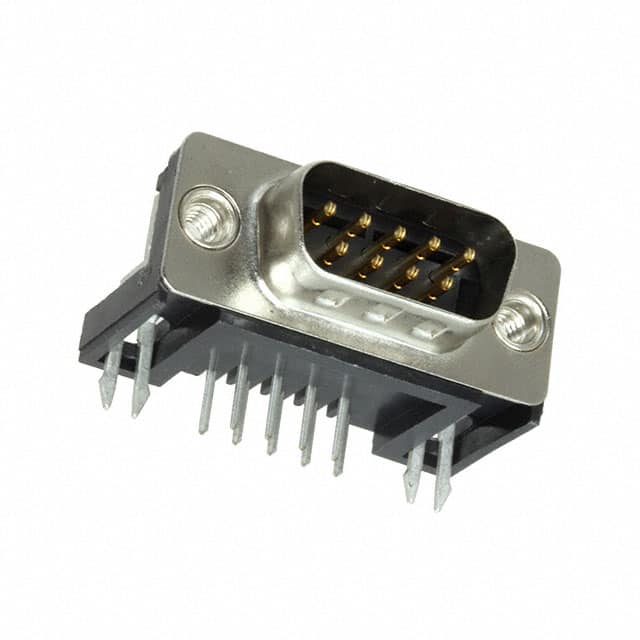

The TE Connectivity 2301843-1 is a D-Sub plug connector designed for signal applications. It features 9 positions arranged in 2 rows, with male pins and a through hole right angle mounting style. The connector uses solder termination for secure connections.
The contacts are gold plated with a thickness of 15.0µin (0.38µm), ensuring reliable conductivity and corrosion resistance. The shell is made of steel with nickel plating, providing durability and shielding. The connector has a shell size of 1 (DE, E) and includes a flange feature with board side (4-40) threads for secure mounting.
Additional features include board lock and grounding indents for stable PCB attachment. The backset spacing is 0.411 inches (10.43mm). The connector is rated for a current of 2A per contact and the housing material has a UL94 V-0 flammability rating. This connector is suitable for a variety of signal interconnection applications in computers, industrial equipment, and communication devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
| 10+ | $2.27 | $2.27 |
| 25+ | $1.99 | $1.99 |
| 90+ | $1.89 | $1.89 |
| 270+ | $1.80 | $1.80 |
| 540+ | $1.75 | $1.75 |
| 1,080+ | $1.58 | $1.58 |
| 2,520+ | $1.49 | $1.49 |
| 5,040+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions arranged in 2 rows.
2A per contact.
Through hole, right angle with solder termination.
Gold plating with a thickness of 15.0µin (0.38µm).
Steel with nickel plating.
Yes, features include board lock and grounding indents.
UL94 V-0.
