| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,310 pcs
|
2310 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

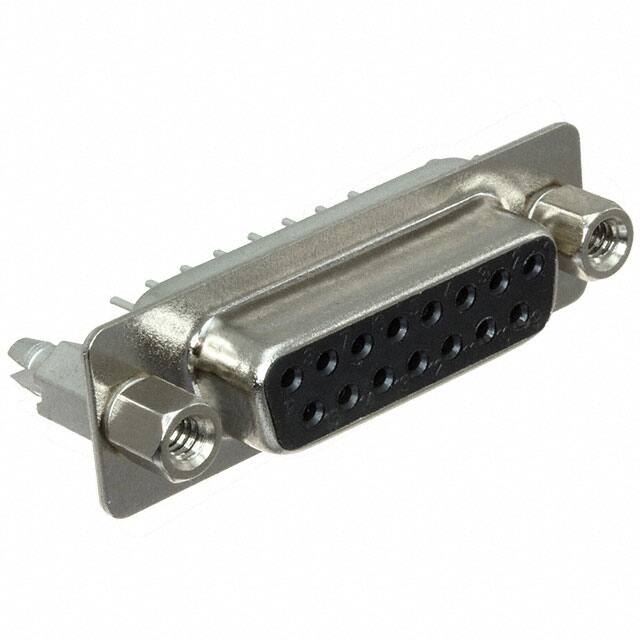

The TE Connectivity 2301840-1 is a D-Sub receptacle connector featuring 15 female socket contacts arranged in 2 rows. It is designed for through hole mounting with solder termination, making it suitable for vertical PCB installation. The connector includes a board lock feature for secure attachment to the PCB.
Electrical rating is 1.5A per contact. The contacts are gold plated with a thickness of 15µin (0.38µm). The shell is made of steel with a tin-nickel finish. The connector layout is shell size 2 (DA, A), and it features a female screwlock (4-40) on the mating side.
The insulator material has a UL94 V-0 flammability rating. The component is indicated as RoHS3 compliant, REACH unaffected, and has MSL level 1 (unlimited). These compliance statements should be verified for current status.
15 positions.
1.5A per contact.
Through hole with solder termination.
Gold with 15µin thickness.
Yes, includes board lock.
UL94 V-0.
