| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,620 pcs
|
1620 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

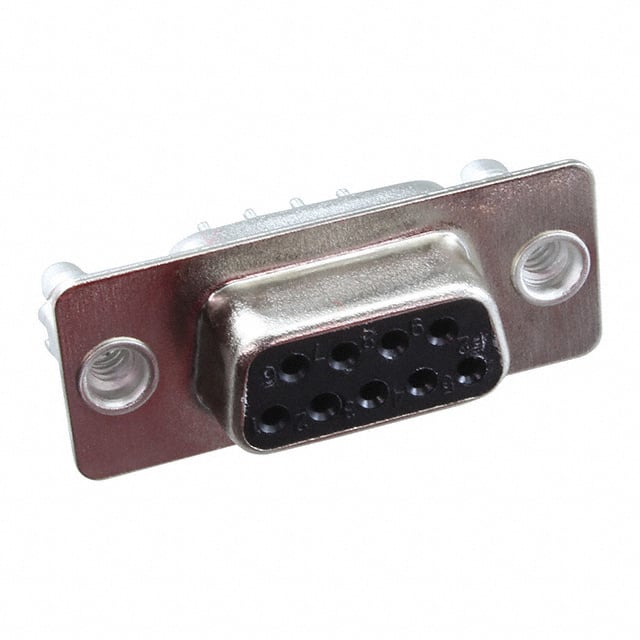

The TE Connectivity 2301838-1 is a D-Sub receptacle connector featuring 9 positions arranged in 2 rows of female sockets. Designed for through hole mounting with solder termination, this connector provides a reliable signal interface. The contacts are gold plated with a thickness of 15.0 microinches (0.38 micrometers) for enhanced conductivity and corrosion resistance.
The shell is made of steel with a tin-nickel plating and is sized 1 (DE, E). A board lock feature secures the connector to the PCB during assembly. The flange uses board side (4-40) thread for mating. The insulator material has a flammability rating of UL94 V-0. This connector is rated for 1.5A current per contact.
This connector has 9 positions arranged in 2 rows.
It is mounted through hole and terminated by solder.
The current rating is 1.5A per contact.
The contacts have a gold finish with a thickness of 15.0 microinches (0.38 micrometers).
Yes, it includes a board lock feature.
The shell size is 1 (DE, E).
The insulator material is rated UL94 V-0.
