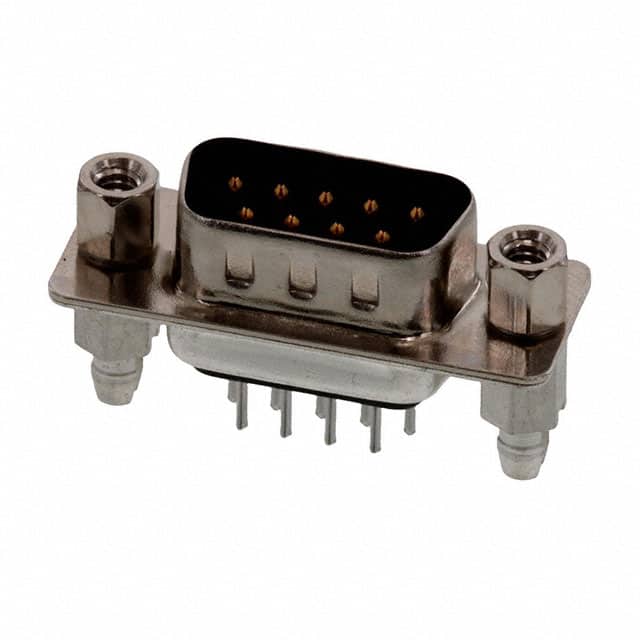

The TE Connectivity 2301826-2 is a D-Sub, D-shaped connector assembly designed for reliable signal connectivity. This plug connector features 9 male pin contacts arranged in 2 rows, suitable for standard DE-9 (E) shell size applications.
The connector uses through hole mounting with solder termination for robust mechanical attachment to printed circuit boards. Contacts are finished with 15.0 µin (0.38 µm) gold plating for corrosion resistance and reliable signal transmission. The shell is constructed from steel with a tin-nickel plated finish.
Key design features include a mating side female screwlock (4-40) flange for secure mating, integrated board locks for additional PCB retention, and grounding indents for improved electromagnetic compatibility. The insulator material has a UL94 V-0 flammability rating.
This connector is rated for a maximum current of 1.5 A per contact for signal applications. It is RoHS3 compliant and REACH unaffected per low-confidence data.
It is a plug with male pins, D-Sub style.
It has 9 positions arranged in 2 rows.
Through hole mounting with solder termination.
The current rating is 1.5 A per contact.
Gold finish with a thickness of 15.0 µin (0.38 µm).
Steel with a tin-nickel plated finish.
UL94 V-0.
