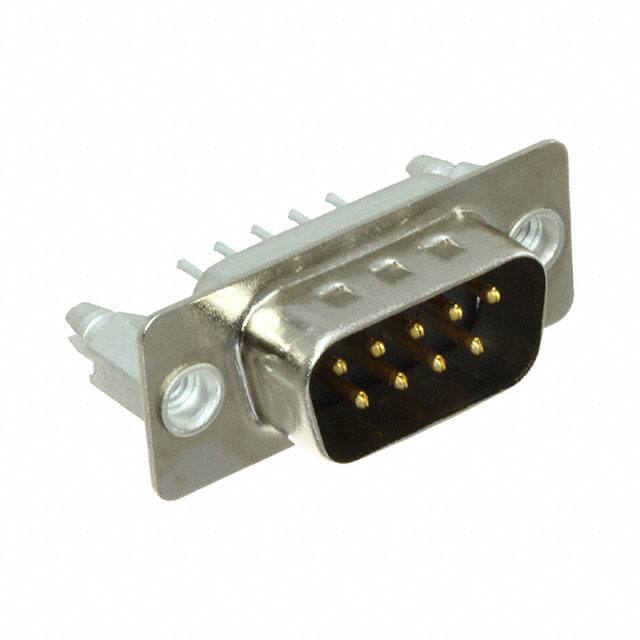

The TE Connectivity 2301826-1 is a standard D-Sub plug connector designed for reliable signal interconnection in electronic systems. It features 9 male pin contacts arranged in 2 rows, with a DE (E) shell size. The connector uses through-hole mounting with solder termination for secure attachment to printed circuit boards.
Electrical performance includes a current rating of 1.5A per contact. The contacts are finished with 15.0µin (0.38µm) gold plating for corrosion resistance and reliable low-level signal transmission. The steel shell is finished with tin-nickel plating, and the connector includes board locks and grounding indents for enhanced mechanical retention and EMI grounding.
The insulator material meets UL94 V-0 flammability rating. This connector is suitable for a wide range of data and signal applications requiring a compact 9-position interface.
It has 9 positions arranged in 2 rows.
Through-hole mounting with solder termination.
1.5A per contact.
Gold plating with a thickness of 15.0µin (0.38µm).
Shell size 1 (DE, E).
