| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Board Thickness | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Diameter | |
| Flange Diameter | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Number of Turrets | |
| Staking Side ID | |
| Staking Side OD | |
| Terminal Type | |
| Termination | |
| Termination Style |

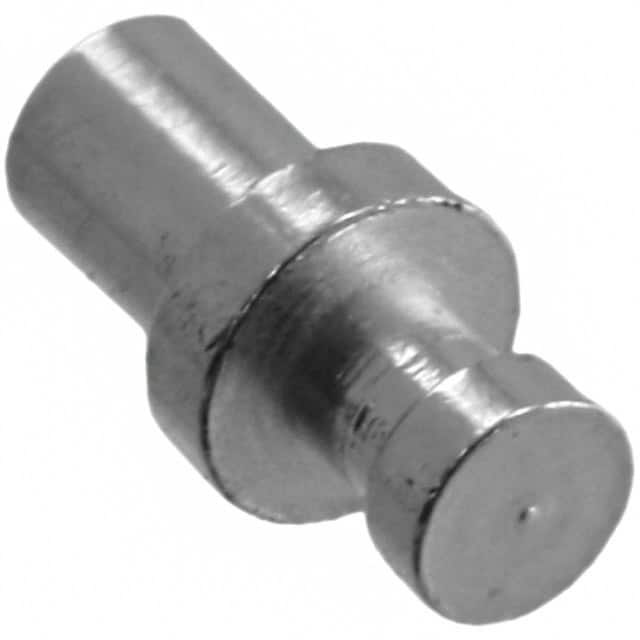

The Mill-Max 2301-2-00-44-00-00-07-0 is a single end turret terminal designed for through hole mounting with a swage termination. It features a non-insulated brass alloy contact with a silver finish of 300.0µin (7.62µm) thickness.
This terminal has a length of 2.36mm (0.093") and a diameter of 1.60mm (0.063"). The flange diameter is 2.39mm (0.094") and it requires a mounting hole diameter of 0.067" (1.70mm). It is designed for a board thickness of 0.062" (1.57mm). The staking side outer diameter is 0.062" (1.57mm) and inner diameter is 0.046" (1.17mm).
Typical applications include use as a solder terminal in printed circuit boards, test points, and interconnect points where a reliable mechanical and electrical connection is needed.
Through hole with swage termination.
Brass alloy with silver plating, 300.0µin (7.62µm) thick.
Length 2.36mm (0.093"), diameter 1.60mm (0.063").
0.062" (1.57mm) nominal board thickness.
No, it is non-insulated.
