| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Prop 65 | |
| Shielding | |
| Tolerance | |
| Type |

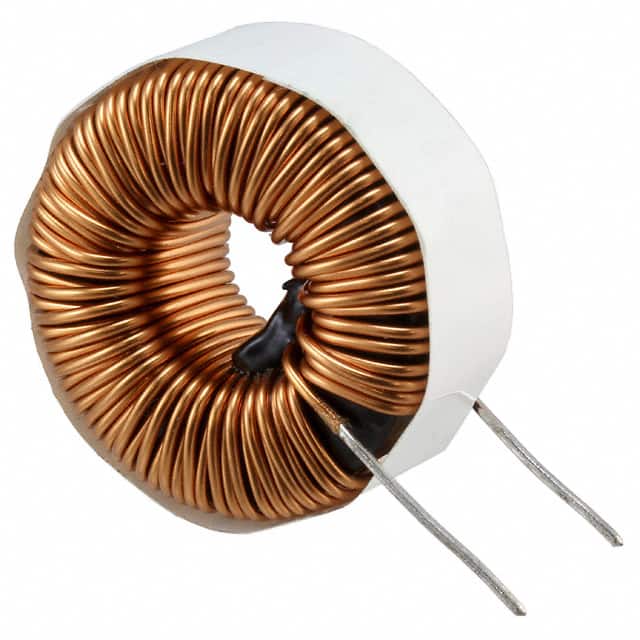

The Bourns 2300LL-220-V-RC is a through hole toroidal inductor from the 2300LL series. It offers an inductance of 22 µH with a tolerance of ±15%, tested at 1 kHz. The component is rated for a DC current of 17.7 A, which results in a 30°C temperature rise (Rated Idc). The maximum DC resistance is 5 mOhm, minimizing power losses.
This inductor features a toroidal core design, which provides low magnetic radiation and low core loss, making it suitable for switch mode power supplies, DC/DC converters, output chokes, and EMI filters. The operating temperature range is -55°C to +125°C. The component is mounted in a through hole style with a radial, vertical (open) package measuring 1.280 inches in diameter and 0.650 inches in width.
The 2300LL-220-V-RC is RoHS compliant and includes a California Proposition 65 warning for cancer and reproductive harm. It is designed for high current applications where low DCR is critical.
The inductance is 22 µH nominal, tested at 1 kHz.
The DC current rating is 17.7 A, which causes a 30°C temperature rise.
The maximum DC resistance is 5 mOhm.
The operating temperature range is -55°C to +125°C.
Yes, it is RoHS compliant as indicated by the -RC suffix.
The package is radial, vertical (open), through hole mount.
