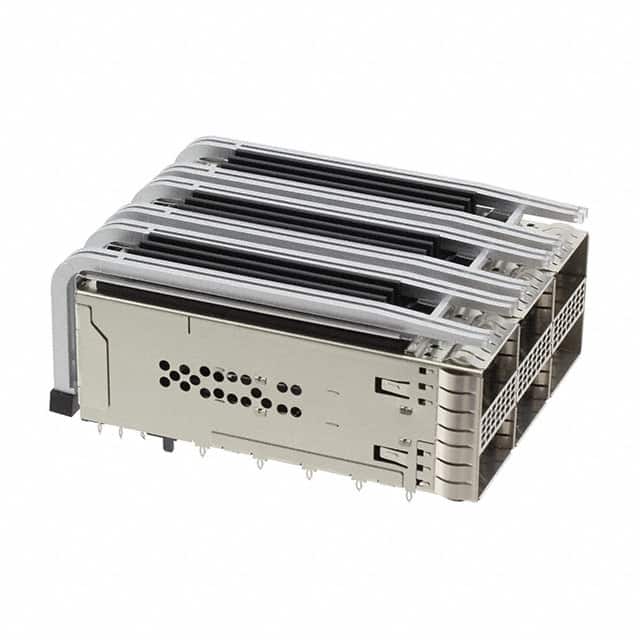

2299924-5 ZQSFP+ receptacle with cage, ganged 2x3 with heat sink, 228 positions, through hole right angle, press-fit termination, gold contact finish.
Mfr Part #:

2299924-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
ZQSFP+ receptacle with cage, ganged 2x3 with heat sink, 228 positions, through hole right angle, press-fit termination, gold contact finish.
✓ Total Stock: 18 pcs

2299924-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2299924-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Lead Style
Mounting Type
Number of Positions
Storage Temperature
Termination
Termination Style
View Similar Products (0)

2299924-5 Description

Short technical summary and product information.

The 2299924-5 is a ZQSFP+ receptacle with cage assembly from TE Connectivity. It features a ganged 2x3 configuration with an integrated heat sink for thermal management. The connector has 228 positions (38 per port) and uses a through hole, right angle mounting style with press-fit termination for reliable PCB attachment.



This connector is EMI shielded and includes a light pipe for visual port identification. The contacts are finished with 30.0µin (0.76µm) of gold, ensuring robust signal integrity and corrosion resistance. The press-fit termination eliminates the need for soldering, simplifying assembly and reducing manufacturing steps.



Designed for high-speed data applications, this ZQSFP+ connector supports the latest pluggable interface standards. The ganged cage design allows for dense port configurations, making it suitable for networking equipment, switches, and data center infrastructure where space is at a premium.

2299924-5 Quick Information

Product Type: Pluggable Connector Assembly
Series: zQSFP+
Canonical Name: ZQSFP+ Receptacle with Cage, Ganged (2x3) with Heat Sink, 228 Positions, Through Hole, Right Angle, Press-Fit
Subcategory: Pluggable Connector Assemblies

2299924-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

2299924-5 Features

  • ZQSFP+ receptacle with ganged 2x3 cage.
  • Integrated heat sink for thermal management.
  • 228 positions with press-fit termination.
  • Gold contact finish 30.0µin thickness.
  • EMI shielded with integrated light pipe.

2299924-5 Applications

  • Used in high-speed networking switches and routers.
  • Ideal for data center interconnect applications.
  • Supports ZQSFP+ pluggable transceiver modules.
  • Suitable for telecom infrastructure equipment.

2299924-5 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the connector type of the 2299924-5?

The connector type is ZQSFP+.

How many positions does the 2299924-5 have?

It has 228 positions (38 per port in a 2x3 configuration).

What is the mounting style of this connector?

Through hole, right angle mounting with press-fit termination.

What is the contact finish on the 2299924-5?

Gold contact finish with a thickness of 30.0µin (0.76µm).

Does the 2299924-5 include EMI shielding?

Yes, it is EMI shielded and includes a light pipe.
