| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating (Max) | |
| Data Rate | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Features | |
| Housing Material | |
| Lead Style | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Operating Temperature Range | |
| Plating | |
| Termination | |
| Unmating Force | |
| Voltage Rating (max) |

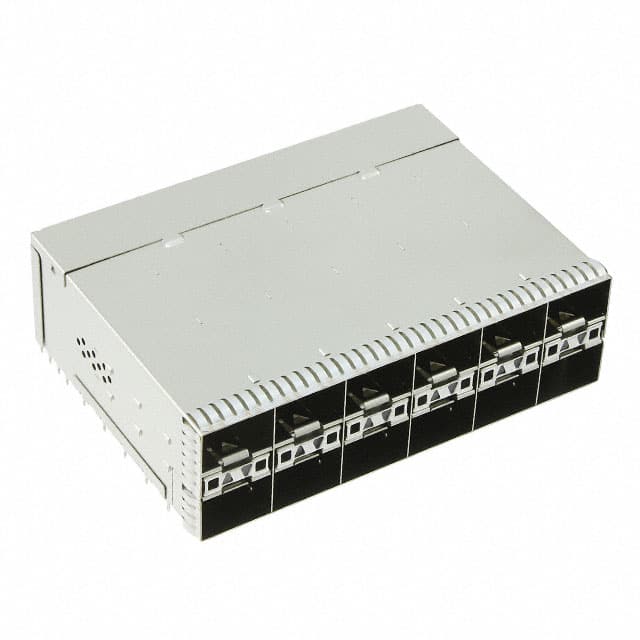

The TE Connectivity 2291491-1 is a zSFP+ receptacle with cage, part of the zSFP+ I/O interconnect family. It is designed for high-speed data transmission, supporting data rates up to 28 Gbps NRZ and 56 Gbps PAM-4, compliant with SFF-8402 and backward compatible with SFP+ connectors. The connector features a ganged 2x6 cage configuration providing 12 ports with 240 positions (20 x 12). It uses press-fit termination and through hole, right angle mounting for robust PCB attachment. The contacts are gold plated with 30.0µin (0.76µm) thickness over nickel underplating, ensuring reliable connections. Key features include board guides, EMI shielding, and light pipe options for status indication. The housing is made of high-temperature thermoplastic, UL 94V-0 rated. Electrical ratings include 120V AC max voltage and 0.5A per contact. The operating temperature range is -40°C to +85°C, with a durability of 250 mating cycles. This connector is suitable for applications requiring high-speed I/O in networking, telecommunications, and data center equipment.
240 positions (20 x 12).
0.5A.
120V AC.
Through hole, right angle.
28 Gbps NRZ and 56 Gbps PAM-4.
-40°C to +85°C.
30.0µin (0.76µm) gold.
