| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Style |

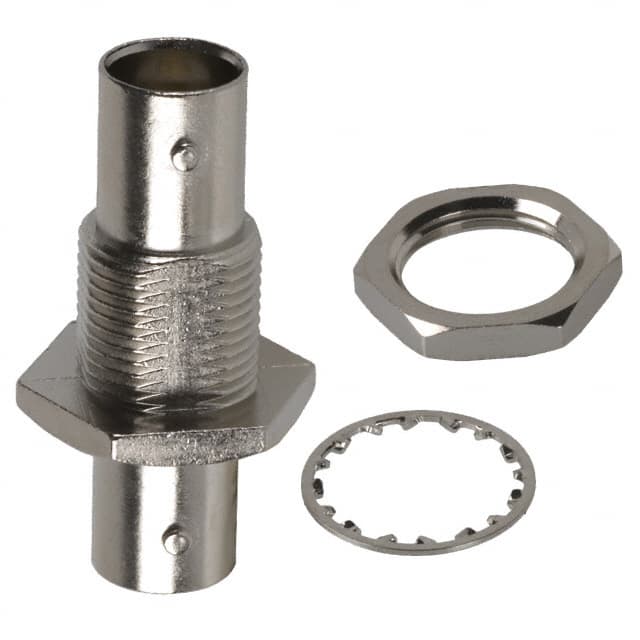

The 228226-3 is a BNC to BNC coaxial adapter from TE Connectivity designed for same-series connections. It features a jack to jack configuration with female socket center contacts on both ends, providing a straight inline connection path.
This adapter is specified for 50 Ohm impedance systems and uses bayonet lock fastening on both ends for secure coupling. The center contacts are gold plated for reliable signal integrity and corrosion resistance.
The adapter is designed for panel mount installation with a bulkhead mounting feature, making it suitable for fixed installations where a pass-through connection through a panel is required. Its straight body style maintains signal path alignment.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.83 | $9.83 |
| 10+ | $6.71 | $6.71 |
| 25+ | $6.49 | $6.49 |
| 50+ | $6.34 | $6.34 |
| 100+ | $6.19 | $6.19 |
| 250+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm
BNC jack to jack same series adapter
Panel mount with bulkhead feature
Gold
Bayonet lock on both ends
