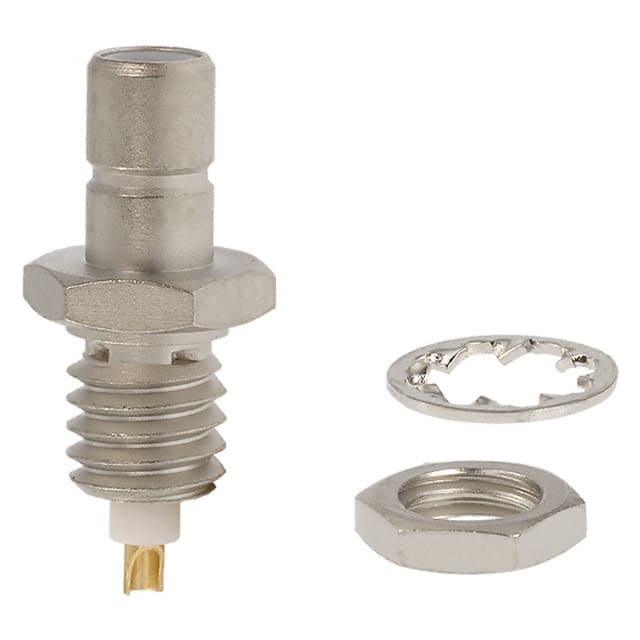

228216-1 SMB receptacle connector with 50 Ohm impedance, snap-on coupling, and panel mount with bulkhead nut. Features solder cup termination for contact and shield.
Mfr Part #:

228216-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
SMB receptacle connector with 50 Ohm impedance, snap-on coupling, and panel mount with bulkhead nut. Features solder cup termination for contact and shield.
✓ Total Stock: 10 pcs

228216-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

228216-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Features
Frequency
Housing Color
Impedance
Mounting Feature
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
Termination Style
View Similar Products (0)

228216-1 Description

Short technical summary and product information.

The TE Connectivity 228216-1 is an SMB receptacle connector designed for 50 Ohm impedance RF applications up to 4 GHz. It has a male pin center contact and snap-on fastening for secure mating.



This connector is panel mounted with a bulkhead rear side nut for stable installation. Contact termination uses a solder cup, while the shield is terminated via solder. The center contact is made of brass, and the housing is silver.



The extended insulation feature enhances performance in demanding environments. This connector is suitable for general RF interconnect applications requiring 50 Ohm characteristic impedance and reliable mechanical connection.

228216-1 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: SMB Receptacle Connector, 50 Ohm Impedance, Panel Mount, Solder Cup Termination
Subcategory: Receptacle

228216-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

228216-1 Features

  • 50 Ohm characteristic impedance.
  • Operates at frequencies up to 4 GHz.
  • Snap-on fastening for quick locking.
  • Panel mount with bulkhead rear nut.
  • Solder cup contact termination.

228216-1 Applications

  • Used in 50 Ohm RF transmission lines.
  • Connects antennas or modules in communication systems.

228216-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the 228216-1 connector?

50 Ohm.

What is the maximum operating frequency?

4 GHz.

What type of connector is it?

SMB receptacle with male pin center contact.

How is the connector mounted?

Panel mount with a bulkhead rear side nut.

What fastening type does it use?

Snap-on.
