2281128 Interface module with 9-position D-Sub male control side and screw terminal block process side. Rated for 2.5A per contact and 125V, with DIN rail mounting.
Mfr Part #:

2281128

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Interface module with 9-position D-Sub male control side and screw terminal block process side. Rated for 2.5A per contact and 125V, with DIN rail mounting.
✓ Total Stock: 20 pcs

2281128 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

2281128 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Side Cable Retainer
Control Side Connection
Current Rating (Per Contact)
Features
Halogen Free
Length
Mounting Type
Operating Temperature
Positions
Process Side Connection
SVHC Present
Voltage
Width
Wire Gauge
View Similar Products (0)

2281128 Description

Short technical summary and product information.

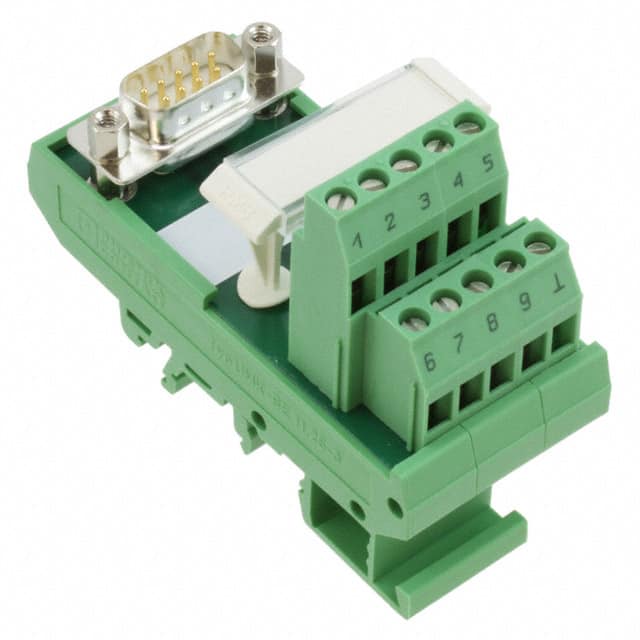

The 2281128 is an interface module from Phoenix Contact that provides a 9-position D-Sub male connector on the control side and screw terminal blocks on the process side. It is designed for reliable signal distribution and breakout in industrial control systems. The module is rated for 2.5A per contact and 125V, supporting wire sizes from 12 to 24 AWG. The control side connection features a jackscrew socket for secure cable retention. The module includes a label holder for easy identification and is mounted on a DIN rail. Operating temperature range is -20°C to 50°C. Dimensions are 33.81 mm (length) by 76.99 mm (width). This interface module is suitable for connecting control equipment to field wiring.

2281128 Quick Information

Product Type: Interface Module
Canonical Name: Interface Module, D-Sub Male 9 Pos, Terminal Block Screw Connection, DIN Rail Mount
Subcategory: Terminal Block Interface Modules

2281128 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

2281128 Features

  • 9-position D-Sub male control side connector.
  • Screw terminal block process side connection.
  • Rated for 2.5A per contact at 125V.
  • Accepts 12-24 AWG wire gauge.
  • DIN rail mounting with label holder.

2281128 Applications

  • Used in industrial control panel wiring.
  • Ideal for D-Sub signal breakout applications.
  • Suitable for PLC and sensor interfaces.

2281128 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the interface module have?

9 positions.

What is the current rating per contact?

2.5 A.

What is the voltage rating?

125 V.

What is the mounting type?

DIN Rail.

What wire gauge is supported?

12-24 AWG.

What is the operating temperature range?

-20°C to 50°C.

Does it have a label holder?

Yes, it includes a label holder.
